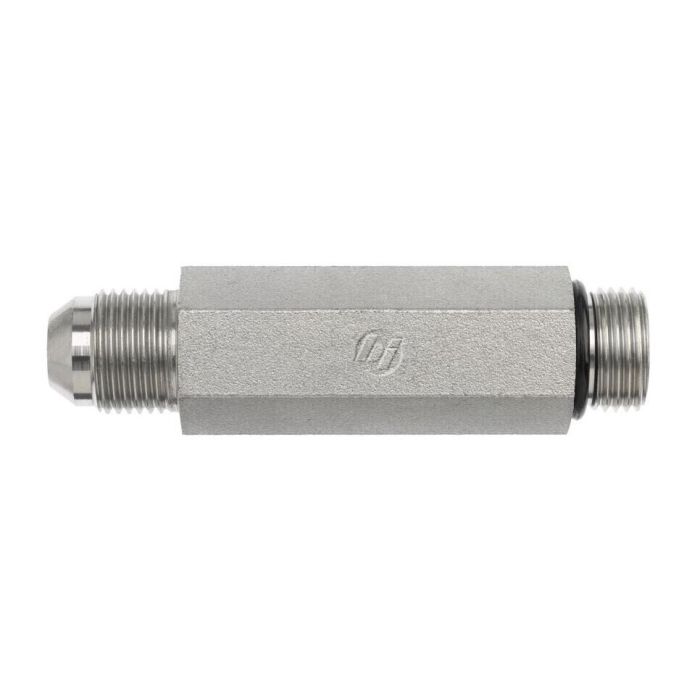

16MJ-16MORB STRAIGHT X-LONG (5.27 OAL)

Description & Features

This straight fitting features a male JIC SAE 37-degree flare on one end and a male SAE O-ring boss on the other. This 16MJ-16MORB STRAIGHT X-LONG (5.27 OAL) is constructed from steel for durability.

It conforms to SAE J514 specifications for reliable performance in hydraulic applications. The overall length of this fitting is 5.270 mm, with thread sizes of 1-5/16-12 for both connections. The O-ring seal is made of NBR (Nitrile Butadiene Rubber).

SKU: 6400-LL-16-16-O

Supplier Part Number (MPN): 6400-LL-16-16-O

Specifications

Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male JIC, Male SAE ORB	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 5.27 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/2 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 4500 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6400-LL-O Series	Thread 2 Drill Dimensions 0.844 in	Thread B1 Drill Dimensions 0.844 in	Thread Size 1-5/16-12

Product Questions & Answers (1)

Question by: Gary B on Sep 25, 2025, 5:53 PM

So, this here is a straight fitting, right? What kinda metal is it made outta?

Answer by: Customer Support on Sep 27, 2025, 6:57 AM

Built tough, this fitting is made from steel for long-lasting durability in hydraulic systems.
