08MORB-08MP STRAIGHT STNLS

Description & Features

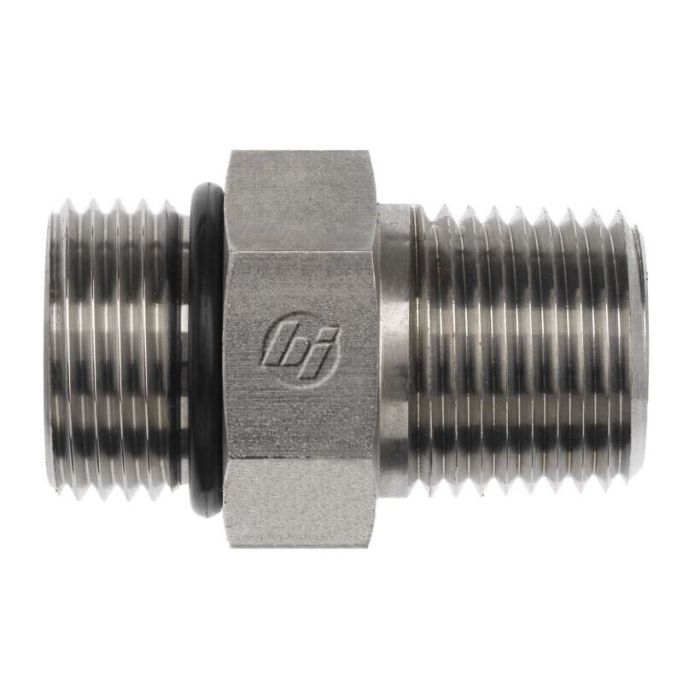

This straight stainless steel fitting, designated as 08MORB-08MP STRAIGHT STNLS, features a male SAE O-ring boss connection on one end and a male NPTF connection on the other.

The B1 thread is 3/4-16 with SAE J514 specification, while the B2 thread measures 1/2-14 and conforms to SAE J476 standards. The O-ring seal material is NBR.

SKU: 6401-08-08-O-SS

Supplier Part Number (MPN): 6401-08-08-O-SS

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male SAE ORB, MNPT	Connection Type 1 Male SAE ORB	Connection Type 2 MNPTF	Dimension Standards SAE J1926, SAE J476, SAE J514	Dimensions 1.55 in L	Fitting Type Adapter	Hex Size 7/8 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6401-O Series	Thread 2 Drill Dimensions 0.531 in	Thread B1 Drill Dimensions 0.391 in	Thread Size 3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Clint R on May 17, 2025, 7:04 PM

What kind of seal does this fitting use?

Answer by: Customer Support on May 19, 2025, 7:24 AM

It uses an NBR O-ring seal, which should provide a reliable connection.
