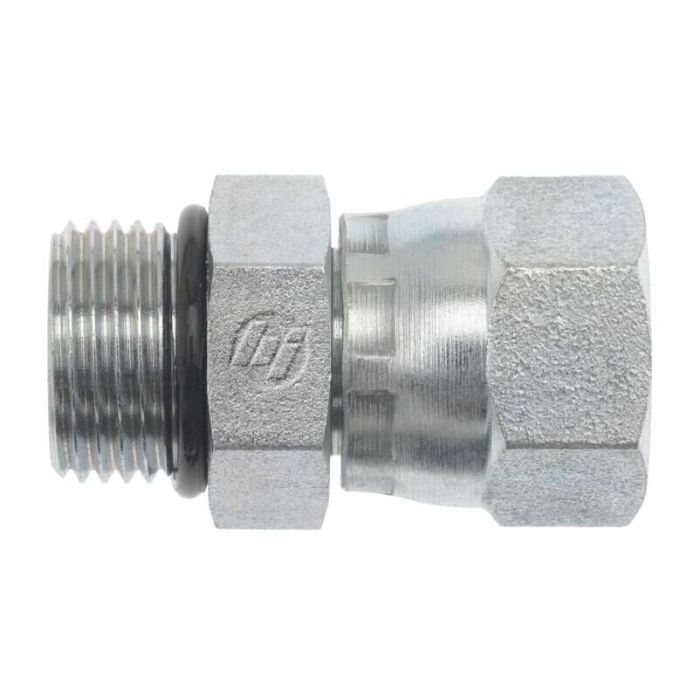

main product photo

AQP 2266-4-4 SS

Ask A Question

Description & Features

This stainless steel fitting from Brennan Industries offers robust performance for industrial hydraulic systems. Crafted from straight stainless steel, this component ensures durability and resistance to corrosion, making it ideal for demanding environments. It features a 7/16-20 Male SAE O-Ring Boss connection on one end and a 7/16-20 Female JIC Swivel 37 Degree Flare on the other, both manufactured to meet SAE J514 specifications. This design facilitates secure connections and reliable sealing, crucial for maintaining system integrity.

The AQP 2266-4-4 SS fitting is equipped with an NBR O-ring seal, providing enhanced compatibility with a variety of hydraulic fluids. With an overall length of 1.310 mm and a hex size of 0.562 mm, it is compact while still offering the necessary strength and stability for industrial use. This fitting is particularly suited to applications requiring precise and secure hydraulic connections.

SKU: 6402-04-04-O-SS

Supplier Part Number (MPN): 6402-04-04-O-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE 37 deg JIC Swivel
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.31 in L
Fitting Type
Adapter
Hex Size
0.563 in
l2 Dimensions
0.96 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6402-O Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
06MORB-06FJS STRAIGHT STNLS

6402-06-06-O-SS

3/8 in

3/8 in

9/16-18

BRENNAN 12 F-JIC SWIVEL X 12 M-ORB SS

6402-12-12-O-SS

3/4 in

3/4 in

1-1/16-12

BRENNAN ADAPTER

6402-24-24-O-SS

1-1/2 in

1-1/2 in

1-7/8-12

Product Questions & Answers (1)

Question by: Howard M on Jun 29, 2025, 1:51 PM
Will this fitting work with regular hydraulic fluid, or do I need something special for the NBR O-ring?
Answer by: Customer Support on Jul 1, 2025, 6:16 AM
This fitting comes with an NBR O-ring seal, which enhances its compatibility with a variety of hydraulic fluids, so you should be good to go with standard stuff.
