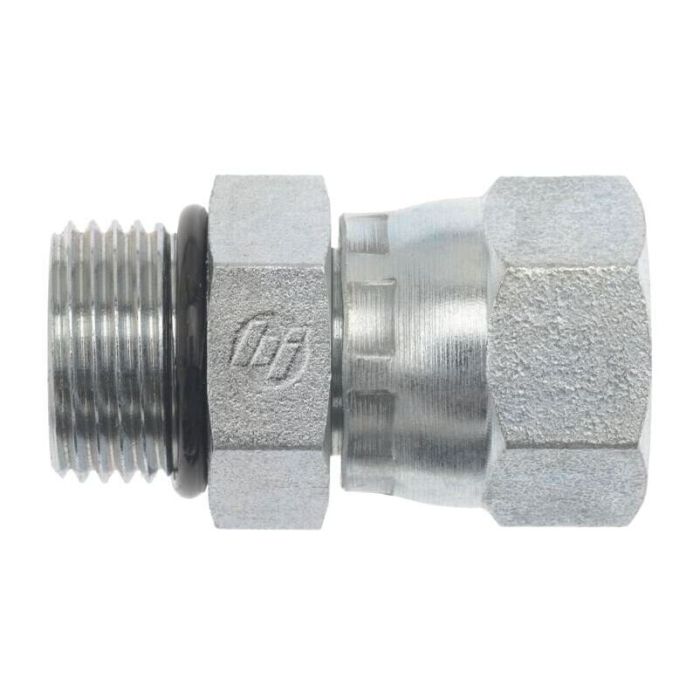

main product photo

06MORB-06FJS STRAIGHT

Ask A Question

Description & Features

The 06MORB-06FJS Straight from Brennan Industries Inc is designed to meet industry standards for dependable performance. This adapter is crafted from straight steel ensuring durability in various applications. Featuring a 9/16-18 thread size the connection type is male SAE O-ring boss to female JIC swivel 37-degree flare.

With an overall length of 1.430 mm and an additional length of 1.050 mm it fits seamlessly into system requirements. The C Hex dimension stands at 0.688 mm providing precise fit and installation capability. The seal material is NBR known for its reliability in sealing connections.

Both thread specifications conform to SAE J514 standards highlighting its compatibility and adherence to quality requirements. The adapter's threads have a drill size of 0.297 mm offering consistency in measurements. It is suitable for use in scenarios requiring robust attachment and secure fittings.

Supplier Part Number: 6402-06-06-O

MPN: 6402-O

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE 37 deg JIC Swivel
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.48 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 in
l2 Dimensions
1.05 in
l Dimensions
1.43 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6402-O Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Sherry C on Jul 24, 2025, 6:05 PM
Is this fitting likely to hold up well in hydraulic systems that see a lot of vibration?
Answer by: Customer Support on Jul 26, 2025, 5:16 PM
Crafted from straight steel, this adapter should offer good durability in systems where vibration is a factor.
Question by: Lyle S on Jun 20, 2025, 7:08 AM
got a hose end with a 37 degree JIC swivel, what’s on the other side of this adapter?
Answer by: Customer Support on Jun 21, 2025, 2:56 PM
On the opposite end from the female JIC swivel 37 degree flare, it has a male SAE O-ring boss connection with a 9/16-18 thread, using an NBR O-ring seal.
