06MORB-08FJS STRAIGHT

Description & Features

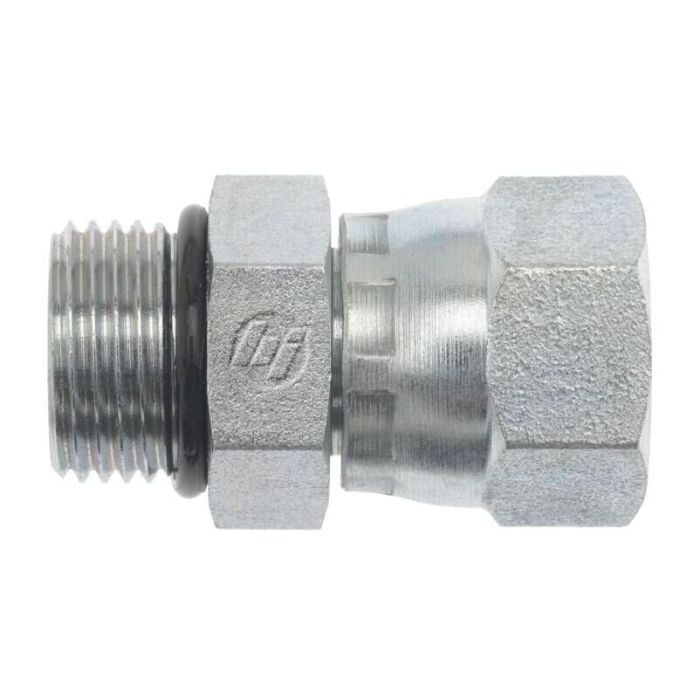

The 06MORB-08FJS STRAIGHT adapter from Brennan Industries Inc is precisely engineered for industrial applications. It measures 1.620 mm in overall length and 1.200 mm in length from base to swivel point. Made from high-quality straight steel this adapter complies with SAE J514 standards for reliable performance.

At one end it features a 9/16-18 Male SAE O-Ring Boss thread and at the other a 3/4-16 Female JIC Swivel 37-degree Flare thread ensuring a secure and leak-resistant connection. Both thread types are meticulously drilled to diameters of 0.297 mm and 0.391 mm respectively providing compatibility and ease of installation.

An NBR O-Ring is included for enhanced sealing capabilities and the adapter has a hex size of 0.875 mm for secure wrenching. Suitable for a wide range of fluid control and hydraulic applications this component helps maintain robust system integrity.

The product also includes a PROP-65 warning for California residents ensuring compliance with safety regulations.

Supplier Part Number: 6402-06-08-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6402-06-08-O	Product Weight 0.12 lbs

Product Questions & Answers (2)

Question by: Jerry H on Aug 29, 2025, 6:40 AM

Reckon this'll fit my setup? Got a 9/16-18 male SAE O-ring boss thread I need to connect to a 3/4-16 female JIC swivel.

Answer by: Customer Support on Aug 31, 2025, 6:25 AM

This 06MORB-08FJS straight adapter is made to connect exactly those two thread types. It's got a 9/16-18 male SAE O-ring boss on one end and a 3/4-16 female JIC swivel 37-degree flare on the other, so it should be just what you need.

Question by: Ray M on Jun 10, 2025, 9:23 AM

what thread types are on each end of this adapter, and are both covered under SAE J514?

Answer by: Customer Support on Jun 12, 2025, 6:22 AM

Both ends fall under SAE J514. One end is a 9/16-18 Male SAE O-Ring Boss, and the other is a 3/4-16 Female JIC Swivel with a 37-degree flare. That combination is pretty common when you're tying an ORB port into a JIC swivel line, and the standard coverage on both sides means you're not mixing specs between connections.
