08MORB-08FJS STRAIGHT

Description & Features

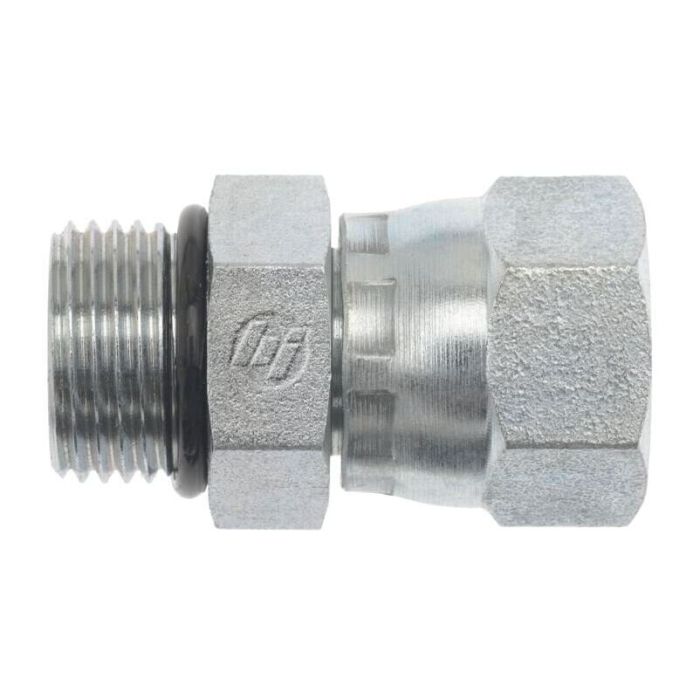

The 08MORB-08FJS STRAIGHT from Brennan Industries Inc. is a key component designed for industrial fluid transfer systems. Crafted from high-grade straight steel this adapter ensures robust performance in demanding environments.

It features an NBR O-ring/seal material that provides excellent resistance to various chemicals and temperatures. With a 3/4-16 thread size and compliant with SAE J514 standards this adapter includes a male SAE O-ring boss and a female JIC swivel 37-degree flare offering dependable connectivity.

The overall length of the adapter is 1.650 mm and it maintains a compact design with a length of 1.230 mm from end to end. The C Hex size of 0.875 mm further adds to its sturdy build and easy installation.

Supplier Part Number: 6402-08-08-O

MPN: 6402-08-08-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6402-08-08-O	Product Weight 0.16 lbs

Product Questions & Answers (3)

Question by: Hank B on Aug 27, 2025, 8:26 AM

Will this here fitting hold up alright in a hydraulic system running about 2500 PSI?

Answer by: Customer Support on Aug 29, 2025, 7:40 AM

This fitting is designed for use in industrial fluid transfer systems, utilizing high-grade steel to ensure robust performance in demanding environments. While the specific pressure rating isn't listed, it's built for the kind of tough conditions you'd expect in those systems.

Question by: Janet P on Jan 24, 2026, 6:58 PM

got a port on my hydraulic manifold that's SAE O-ring boss, and the hose end comin off it is JIC 37 degree swivel. will this adapter work to connect them straight up, or do i need something in between?

Answer by: Customer Support on Jan 26, 2026, 4:54 PM

That's exactly the pairing this fitting is built around. One end is a male SAE O-ring boss at 3/4-16, and the other is a female JIC swivel with a 37-degree flare, also 3/4-16. Both threads conform to SAE J514, so if your port and hose end match those specs, this goes right in between them with no additional adapters needed.

Question by: Roy B on Jul 6, 2025, 7:16 PM

got a hose end with a JIC swivel 37 degree flare, will this mate up if the other side is a 3/4-16 SAE O-ring boss?

Answer by: Customer Support on Jul 7, 2025, 7:28 PM

For tying those two ends together, this adapter is set up exactly that way: one end is a male SAE O-ring boss and the other end is a female JIC swivel 37 degree flare, both in 3/4-16 thread size and built to SAE J514.
