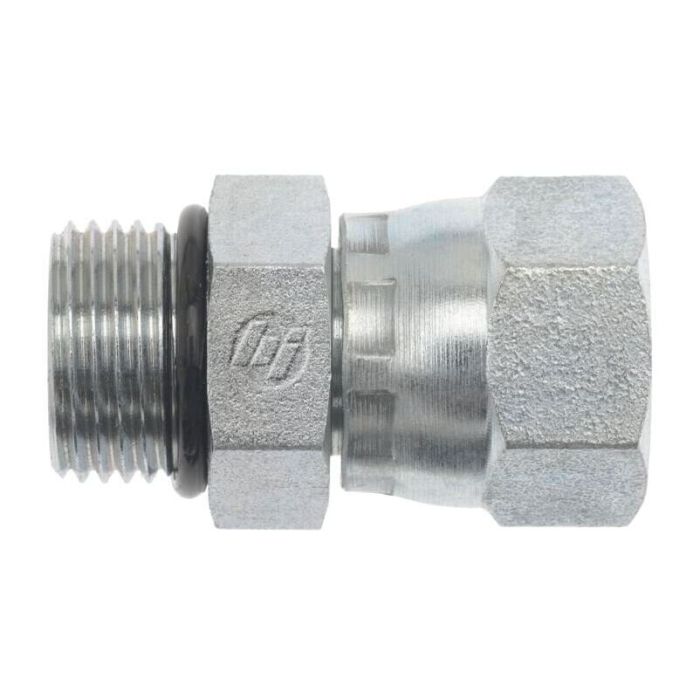

12MORB-16FJS STRAIGHT

A straight hydraulic adapter designed to connect a 1-1/16-12 Male SAE O-Ring Boss port to a 1-5/16-12 Female JIC Swivel 37-degree flare, the 12MORB-16FJS Straight provides a reliable transition between two widely used industrial hydraulic thread standards in a single inline fitting. Both threads conform to SAE J514, making this adapter well suited for high-pressure hydraulic circuit assembly where leak-free, standardized connections are required.

Manufactured from straight steel by Brennan Industries, this fitting features an NBR O-ring seal on the ORB end to ensure positive sealing at the boss port. Overall assembled length measures 2.260 inches, with a hex size of 1.500 inches for wrench engagement during installation. The swivel design on the JIC end allows for rotational alignment without disturbing the seal, reducing stress on connected lines during assembly. California residents should note this product carries a Prop 65 warning.

SKU: 6402-12-16-O

Supplier Part Number (MPN): 6402-12-16-O

Alternate Part Numbers: 6402-12-16, A2266-12-16S
