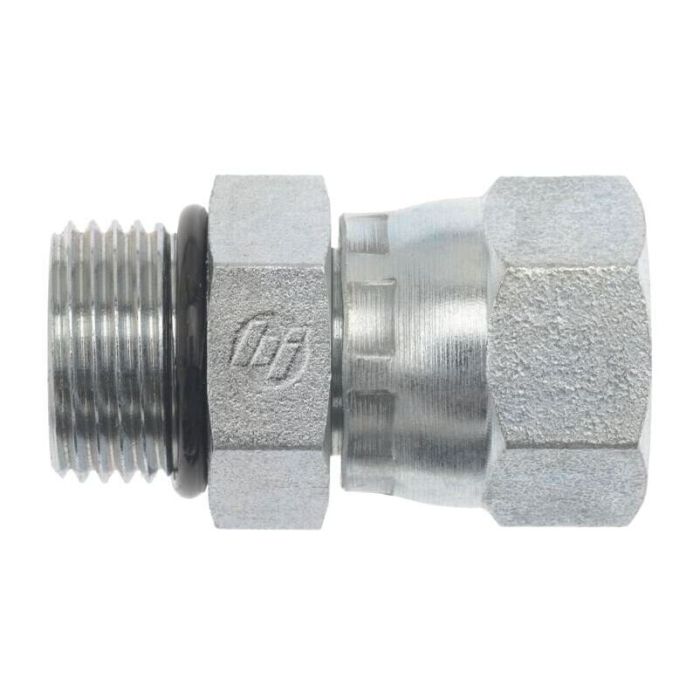

main product photo

16MORB-16FJS STRAIGHT

Ask A Question

Description & Features

Brennan Industries Inc offers a high-quality 16MORB-16FJS Straight adapter designed to meet SAE J514 standards. This adapter is constructed from straight steel providing durability and reliability in demanding industrial environments.

The 16MORB-16FJS Straight features a male SAE O-ring boss and a female JIC swivel 37-degree flare both with a thread size of 1-5/16-12. The O-ring/seal material is NBR ensuring a secure and effective seal.

Dimensions include an overall length of 2.260 mm and a secondary measurement length of 1.666 mm with a C hex value of 1.500 mm.

Supplier Part Number: 6402-16-16-O

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE 37 deg JIC Swivel
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.26 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
l2 Dimensions
1.666 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6402-O Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Warren M on Mar 6, 2025, 7:38 PM
How's this 16MORB-16FJS Straight fitting used in hydraulic systems?
Answer by: Customer Support on Mar 8, 2025, 1:04 PM
This fitting is typically utilized to connect different components in hydraulic systems, ensuring a secure and leak-free connection. It's valuable in applications where straight connections are needed between hoses and machinery.
