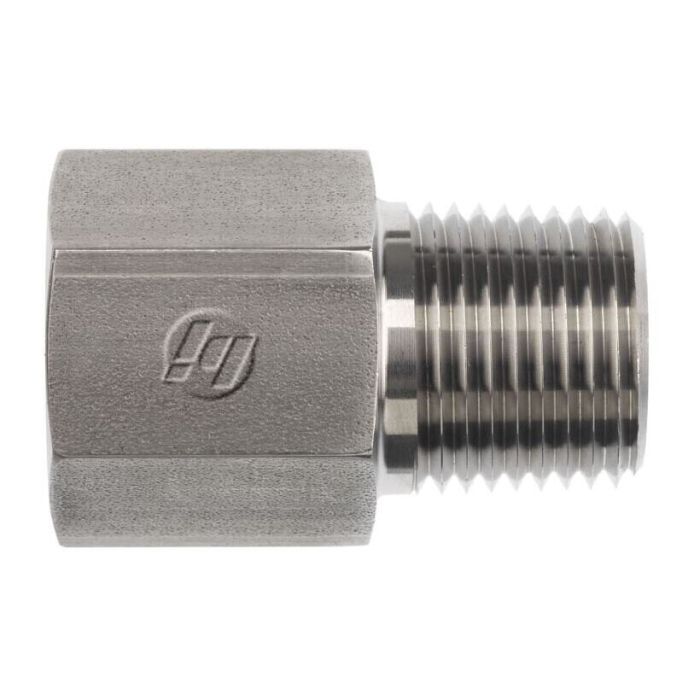

main product photo

04FORB-02MP STRAIGHT

Ask A Question

Description & Features

This straight steel fitting, designated as 04FORB-02MP STRAIGHT, features a female SAE O-ring boss connection on one end and a male NPTF connection on the other.

The female SAE O-ring boss connection has a 7/16-20 thread size and adheres to SAE J514 specifications. The male NPTF connection has a 1/8-27 thread size and complies with SAE J476 standards. Its overall length is 1.060 mm.

SKU: 6404-04-02

Supplier Part Number (MPN): 6404-04-02

Alternate Part Numbers: A2246-2-4S

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Female SAE ORB, MNPT
Connection Type 1
Female SAE ORB
Connection Type 2
MNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
1.12 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 in
l Dimensions
1.06 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
6404 Series
Thread 2 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
1/8-27, 7/16-20

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Janet W on Dec 9, 2025, 4:38 PM
thread sizes on this one got me second-guessing myself, the female end is 7/16-20 and the male end is 1/8-27, that right?
Answer by: Customer Support on Dec 11, 2025, 12:42 PM
You've got it. The female SAE O-ring boss end runs 7/16-20 thread, and the male NPTF end on the other side is 1/8-27. Both are standard sizes, so if your ports match up to those specs, this fitting connects them straight through without any adapters in between.
Question by: Ross H on Apr 1, 2026, 6:24 PM
got a hose end with a 7/16-20 female ORB, will this screw right into it and give me 1/8-27 NPTF on the other side?
Answer by: Customer Support on Apr 2, 2026, 6:31 PM
For matching threads, it’s a straight steel adapter with a female SAE O-ring boss end in 7/16-20 (SAE J514) and a male NPTF end in 1/8-27 (SAE J476), so it bridges those two connection types.
