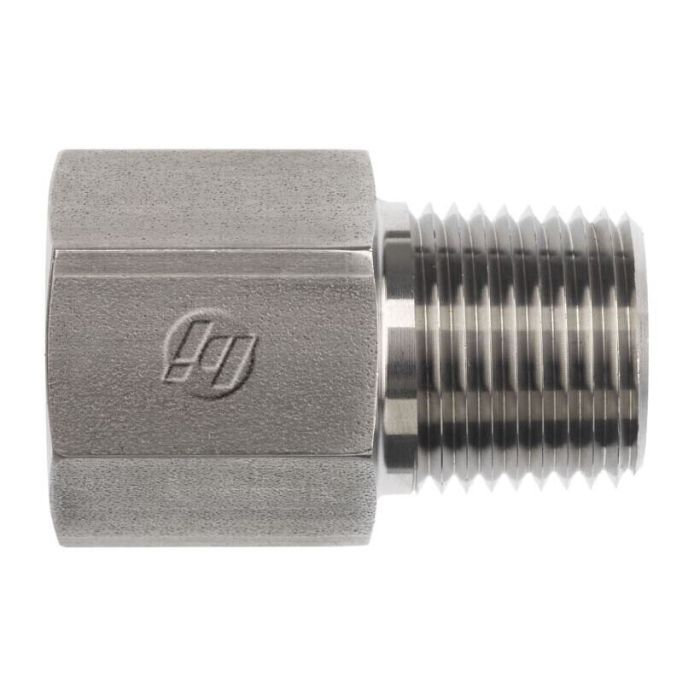

main product photo

05FORB-06MP STRAIGHT

Ask A Question

Description & Features

Manufactured by Brennan Industries Inc, the 05FORB-06MP STRAIGHT is expertly designed for industrial applications requiring high reliability. This adapter, part of the 6404 series, features a female SAE O-Ring Boss (SAE J514) on one end and a male NPTF (SAE J476) on the other, ensuring secure connections.

The adapter is crafted from high-quality straight steel, offering durability and robustness for demanding environments. With an overall length of 1.350 mm, it provides an optimal fit for various setups. The thread specifications include a 1/2-20 female SAE O-Ring Boss and a 3/8-18 male NPTF, meeting industry standards.

This component boasts a thread drill diameter of 0.234 mm on the B1 side and 0.406 mm on the B2 side, ensuring precise compatibility. The product is compliant with California Prop-65 regulations, emphasizing its safety considerations.

Supplier Part Number: 6404-05-06

MPN: 6404-05-06

Specifications

Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
Female SAE ORB, MNPT
Connection Type 1
Female SAE ORB
Connection Type 2
MNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
1.35 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
6404 Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.234 in
Thread Size
1/2-20 x 3/8-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Wayne W on May 1, 2025, 1:41 PM
Thread on one end is 1/2-20 ORB female and the other's 3/8-18 NPTF male -- that right? Just wanna make sure before I go pulling lines apart on this machine.
Answer by: Customer Support on May 2, 2025, 4:51 PM
That's what you've got. The female end is a 1/2-20 SAE O-Ring Boss conforming to SAE J514, and the male end is a 3/8-18 NPTF per SAE J476. Brennan's part number on this one is 6404-05-06, so as long as your ports match those thread sizes and types, you're good to go.
Question by: Hubert S on Jun 29, 2025, 5:47 PM
got a valve block with a 1/2-20 ORB port. is this the piece that’ll adapt it over to 3/8-18 pipe thread?
Answer by: Customer Support on Jul 1, 2025, 9:08 AM
For that setup, it matches up. One end is a 1/2-20 female SAE O-Ring Boss (SAE J514) and the other end is a 3/8-18 male NPTF (SAE J476), so it’s made to transition from an ORB connection to a pipe thread connection.
Question by: Harold S on Nov 7, 2025, 9:47 AM
Reckon this fitting will hold up okay in a hydraulic system running at, say, 2000 PSI? Don't wanna have no leaks.
Answer by: Customer Support on Nov 9, 2025, 6:21 AM
Constraint-first: While the adapter's material is high-quality steel known for robustness, specific pressure ratings aren't provided. It's best practice to verify compatibility with your system's pressure demands to prevent issues.
