10FORB-06MP STRAIGHT

Description & Features

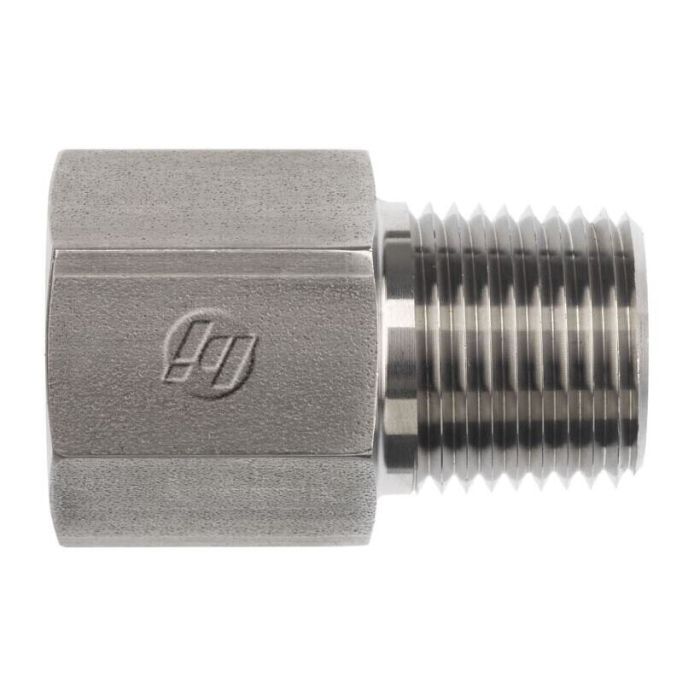

A straight steel adapter from Brennan Industries, the 10FORB-06MP Straight connects a 7/8-14 Female SAE O-Ring Boss port (per SAE J514) to a 3/8-18 Male NPTF thread (per SAE J476). With an overall length of 1.640 mm, this compact fitting suits inline thread conversion in hydraulic circuits where ORB and NPTF connections must interface directly.

Constructed from steel and conforming to established SAE specifications on both ends, this fitting suits hydraulic systems requiring a reliable seal between O-ring face-seal boss ports and tapered pipe thread connections. California residents should note this product is subject to Proposition 65 warnings.

SKU: 6404-10-06

Supplier Part Number (MPN): 6404-10-06

Alternate Part Numbers: A2246-6-10S

Specifications

Brand BRENNAN	Connection Size 1 5/8 in	Connection Size 2 3/8 in	Connection Type Female SAE ORB, MNPT	Connection Type 1 Female SAE ORB	Connection Type 2 MNPTF	Dimension Standards SAE J1926, SAE J476, SAE J514	Dimensions 1.55 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/8 in	l Dimensions 1.64 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 4500 psi	Series 6404 Series	Thread 2 Drill Dimensions 0.406 in	Thread B1 Drill Dimensions 0.484 in	Thread Size 7/8-14 x 3/8-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
6404-02-02	1/8 in	1/8 in	5/16-24 x 1/8-27
6404-04-02	1/4 in	1/8 in	1/8-27, 7/16-20
6404-04-04 Male NPT To Female ORB Adapter	1/4 in	1/4 in	7/16-20, 1/4-18
6404-04-06 Male NPT To Female ORB Adapter	1/4 in	3/8 in	7/16-20 x 3/8-18
6404-05-02	5/16 in	1/8 in	1/2-20 x 1/8-27
6404-05-04 Male NPT To Female ORB Adapter	5/16 in	1/4 in	1/2-20 x 1/4-18
6404-05-06	5/16 in	3/8 in	1/2-20 x 3/8-18
6404-06-04	3/8 in	1/4 in	1/4-18 x 9/16-18
6404-06-06 Male NPT To Female ORB Adapter	3/8 in	3/8 in	3/8-18, 9/16-18
6404-06-08	3/8 in	1/2 in	1/2-14 x 9/16-18
6404-08-06	1/2 in	3/8 in	3/4-16 x 3/8-18
6404-08-08 Male NPT To Female ORB Adapter	1/2 in	1/2 in	3/4-16 x 1/2-14
6404-08-12	1/2 in	3/4 in	3/4-16 x 1-11-1/2
6404-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14
6404-10-12	5/8 in	3/4 in	3/4-14, 7/8-14
6404-12-08	3/4 in	1/2 in	1-1/16-12 x 1/2-14
6404-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
6404-14-12	7/8 in	3/4 in	1-3/16-12 x 3/4-14
6404-16-12	1 in	3/4 in	3/4-14, 1-5/16-12
6404-16-16	1 in	1 in	1-5/16-12 x 1-11-1/2 x 1-5/16-12
6404-16-20	1 in	1-1/4 in	1-5/16-12 x 1-1/4-11-1/2
6404-16-24	1 in	1-1/2 in	1-5/16-12 x 1-1/2-11-1/2
6404-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2, 1-5/8-12
6404-24-24	1-1/2 in	1-1/2 in	1-7/8-12, 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Shane C on Jun 3, 2025, 12:03 PM

Will this fitting hold up ok in a hydraulic system running around 2500 PSI?

Answer by: Customer Support on Jun 5, 2025, 6:58 AM

Constructed from steel and conforming to SAE specifications, this fitting is designed for hydraulic systems requiring a reliable seal between O-ring face-seal boss ports and tapered pipe thread connections. It should handle your 2500 PSI system as long as your connections are properly tightened.
