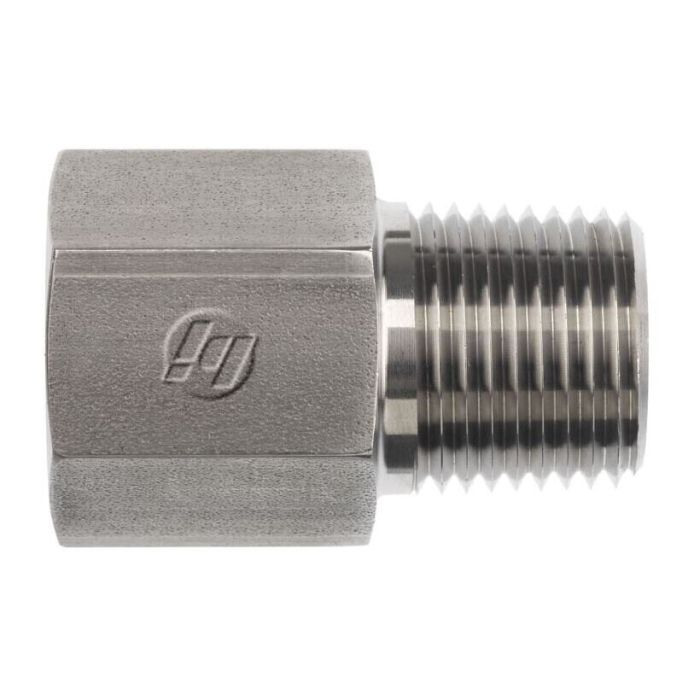

12FORB-12MP STRAIGHT

Description & Features

Crafted from high-quality straight steel, this hydraulic fitting is designed for robust industrial applications. The 12FORB-12MP STRAIGHT fitting features a Female SAE O-Ring Boss thread on one end, conforming to SAE J514 standards, and a Male NPTF thread on the other, adhering to SAE J476 specifications. This combination ensures a secure and reliable connection in high-pressure environments.

With an overall length of 1.980 mm, the fitting is engineered for precision and efficiency. The thread sizes, 1-1/16-12 for the female end and 3/4-14 for the male end, provide compatibility with a wide range of hydraulic systems, ensuring versatility in various industrial settings. Brennan Industries, a trusted name in hydraulic components, guarantees the durability and performance of this product.

SKU: 6404-12-12

Supplier Part Number (MPN): 6404-12-12

Alternate Part Numbers: A2246-12-12S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6404-12-12	Product Weight 0.38 lbs

Product Questions & Answers (2)

Question by: Danny S on Sep 20, 2025, 7:37 AM

thread on the male end is NPTF -- does that mean it'll seal on its own without tape or sealant?

Answer by: Customer Support on Sep 21, 2025, 2:33 PM

NPTF threads are built to create a dry seal through thread-on-thread mechanical interference, so yes, that's the intent. The thread form is designed to deform slightly as it's tightened, which closes off leak paths without relying on tape or compound. That said, a lot of folks in the field still run a light coat of thread sealant as insurance, especially in higher-vibration setups. Either way, the 3/4-14 NPTF male end on this fitting follows SAE J476, so it's spec'd for that kind of pressure-tight connection.

Question by: Sheila M on Sep 20, 2025, 10:53 AM

got a hose end with a 1-1/16-12 female ORB. will this screw into it and seal up right?

Answer by: Customer Support on Sep 22, 2025, 6:36 AM

The female side on this adapter is a Female SAE O-Ring Boss thread in 1-1/16-12, built to SAE J514. The other end is a 3/4-14 Male NPTF thread to SAE J476, so it is meant to transition from an ORB port to an NPTF port.
