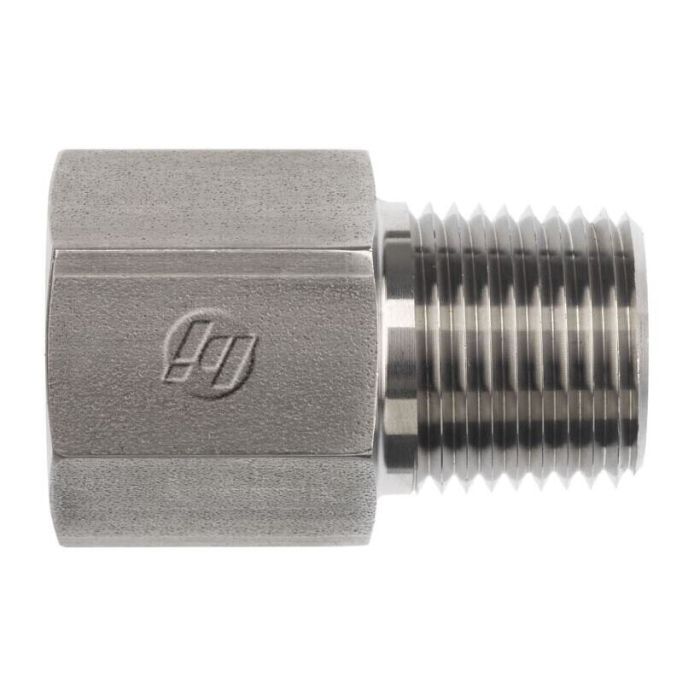

Brennen Adaptor

Description & Features

Crafted from high-quality straight steel, this adaptor is engineered for reliable performance in industrial applications. With a female SAE O-ring boss thread conforming to SAE J514 standards and a male NPTF thread meeting SAE J476 specifications, it ensures a secure and leak-free connection. The adaptor's dimensions include an overall length of 2.130 mm, a thread B1 size of 1-5/16-12, and a thread B2 size of 1-1/4-11-1/2, making it versatile for various hydraulic systems.

The Brennen Adaptor series 6404 is designed for demanding environments, providing durability and precision. Its robust construction supports effective fluid transfer, maintaining system integrity under pressure. Ideal for use in hydraulic systems requiring dependable connectors, this adaptor is a reliable component in achieving optimal performance.

SKU: 6404-16-20

Supplier Part Number (MPN): 6404-16-20

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Size 2 1-1/4 in	Connection Type Female SAE ORB, MNPT	Connection Type 1 Female SAE ORB	Connection Type 2 MNPTF	Dimension Standards SAE J1926, SAE J476, SAE J514	Dimensions 2.13 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1.688 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 3000 psi	Series 6404 Series	Thread 2 Drill Dimensions 1.25 in	Thread B1 Drill Dimensions 0.844 in	Thread Size 1-5/16-12 x 1-1/4-11-1/2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
6404-02-02	1/8 in	1/8 in	5/16-24 x 1/8-27
6404-04-02	1/4 in	1/8 in	1/8-27, 7/16-20
6404-04-04 Male NPT To Female ORB Adapter	1/4 in	1/4 in	7/16-20, 1/4-18
6404-04-06 Male NPT To Female ORB Adapter	1/4 in	3/8 in	7/16-20 x 3/8-18
6404-05-02	5/16 in	1/8 in	1/2-20 x 1/8-27
6404-05-04 Male NPT To Female ORB Adapter	5/16 in	1/4 in	1/2-20 x 1/4-18
6404-05-06	5/16 in	3/8 in	1/2-20 x 3/8-18
6404-06-04	3/8 in	1/4 in	1/4-18 x 9/16-18
6404-06-06 Male NPT To Female ORB Adapter	3/8 in	3/8 in	3/8-18, 9/16-18
6404-06-08	3/8 in	1/2 in	1/2-14 x 9/16-18
6404-08-06	1/2 in	3/8 in	3/4-16 x 3/8-18
6404-08-08 Male NPT To Female ORB Adapter	1/2 in	1/2 in	3/4-16 x 1/2-14
6404-08-12	1/2 in	3/4 in	3/4-16 x 1-11-1/2
6404-10-06	5/8 in	3/8 in	7/8-14 x 3/8-18
6404-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14
6404-10-12	5/8 in	3/4 in	3/4-14, 7/8-14
6404-12-08	3/4 in	1/2 in	1-1/16-12 x 1/2-14
6404-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
6404-14-12	7/8 in	3/4 in	1-3/16-12 x 3/4-14
6404-16-12	1 in	3/4 in	3/4-14, 1-5/16-12
6404-16-16	1 in	1 in	1-5/16-12 x 1-11-1/2 x 1-5/16-12
6404-16-24	1 in	1-1/2 in	1-5/16-12 x 1-1/2-11-1/2
6404-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2, 1-5/8-12
6404-24-24	1-1/2 in	1-1/2 in	1-7/8-12, 1-1/2-11-1/2
