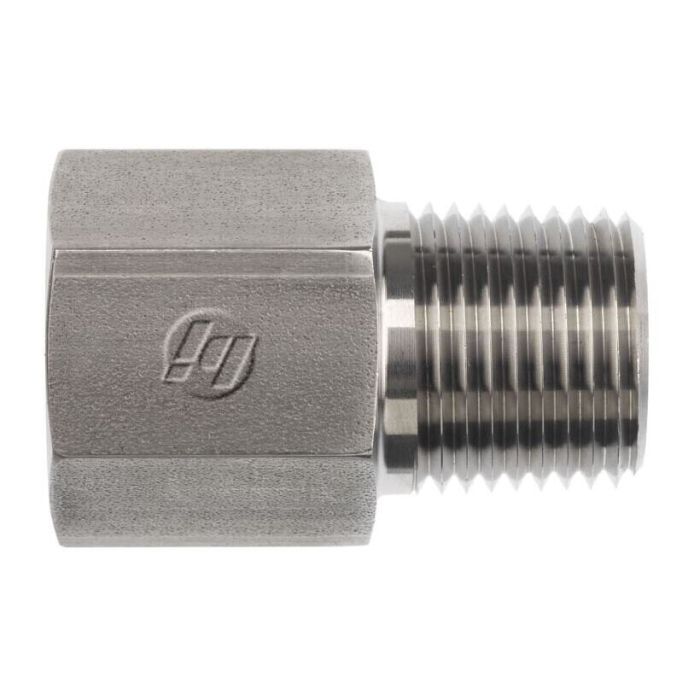

1-1/2IN NPT x 16 oring female

Description & Features

This straight steel fitting features a 1-1/2-11-1/2 Male NPTF thread, conforming to SAE J476 specifications. It also includes a 1-5/16-12 Female SAE O-Ring Boss thread, adhering to SAE J514 standards. The 1-1/2IN NPT x 16 oring female has an overall length of 2.160 mm, designed for secure and reliable connections.

SKU: 6404-16-24

Supplier Part Number (MPN): 6404-16-24

Alternate Part Numbers: 6406-16-24

Specifications

Connection Size 1 1 in	Connection Size 2 1-1/2 in	Connection Type Female SAE ORB, MNPT	Connection Type 1 Female SAE ORB	Connection Type 2 MNPTF	Dimension Standards SAE J1926, SAE J476, SAE J514	Dimensions 1.57 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2 in	l Dimensions 2.16 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 3000 psi	Series 6404 Series	Thread 2 Drill Dimensions 1.5 in	Thread B1 Drill Dimensions 0.844 in	Thread Size 1-5/16-12 x 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Darryl T on Jun 22, 2025, 10:23 AM

So this is a steel fitting, right? Just making sure before I order.

Answer by: Customer Support on Jun 23, 2025, 12:48 PM

That's correct, this straight fitting is made of steel.
