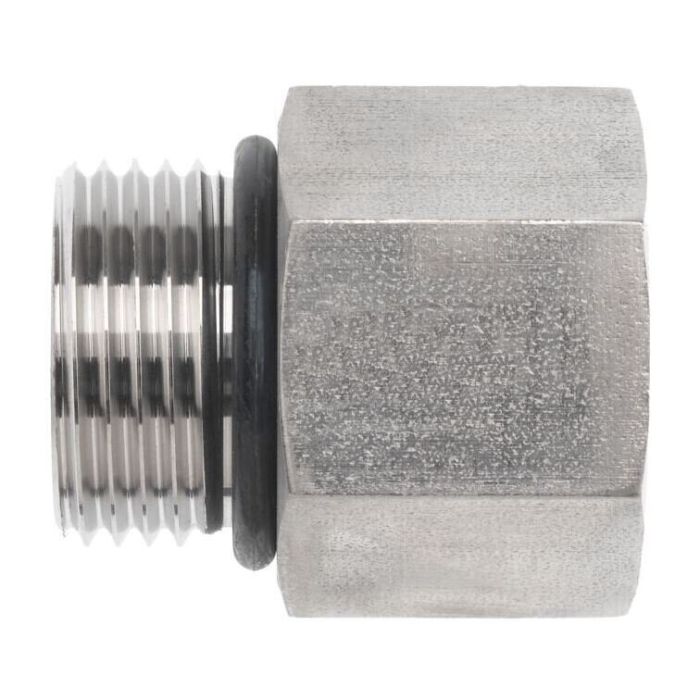

main product photo

05MORB-04FP STRAIGHT

Ask A Question

Description & Features

This BRENNAN INDUSTRIES INC product 05MORB-04FP STRAIGHT delivers reliable performance for specialized applications. Constructed from high-quality straight steel it ensures durability and long-term usage. The O-ring seal is made from premium NBR material optimizing its operational efficiency.

Featuring a 1/2-20 Male SAE O-Ring Boss thread and a 1/4-18 Female NPSM thread this component meets SAE J514 and SAE J476 specifications respectively. The overall length of this piece is 1.200 mm allowing for consistent fit in compatible assemblies.

Designed with a precise 0.234 mm drill diameter for Thread B1 and 0.281 mm for Thread B2 this fitting is ideal for various technical setups requiring dependable and accurate connectors.

Supplier Part Number: 6405-05-04-O

Specifications

Connection Size 1
5/16 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
1.2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6405-O Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.234 in
Thread Size
1/2-20 x 1/4-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Curt G on Oct 4, 2025, 2:45 PM
thread on the male end is 1/2-20 SAE O-Ring Boss -- does that mean it's got the o-ring built in or do I need to supply one separate?
Answer by: Customer Support on Oct 5, 2025, 5:23 PM
The o-ring is part of the sealing setup on that male ORB end, and the seal material is NBR. Whether the o-ring ships already seated in the groove or needs to be placed during installation can vary, but the fitting is built to use an o-ring face seal on that thread, so have your NBR o-ring ready when you go to install it.
