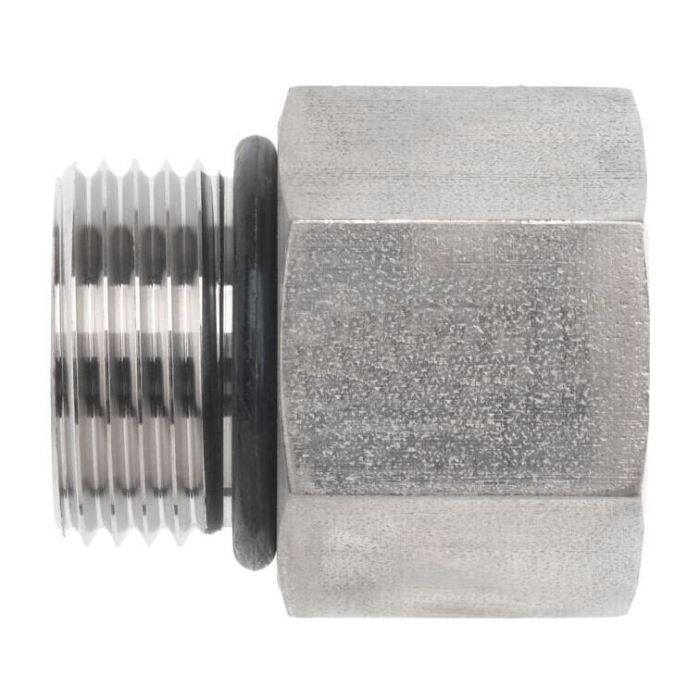

main product photo

08MORB-12FP STRAIGHT

Ask A Question

Description & Features

The 08MORB-12FP Straight crafted by Brennan Industries Inc is a top-tier adapter engineered for precision and durability. Designed with an NBR O-ring this adapter ensures a reliable and leak-free connection.

Constructed from high-quality straight steel it features a male SAE O-ring boss thread (3/4-16) compliant with SAE J514 specifications. On the opposite end it has a female NPSM thread (3/4-14) adhering to SAE J476 specifications.

This adapter measures 1.780 mm in overall length providing consistency and compatibility across various industrial applications.

Supplier Part Number: 6405-08-12-O

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
FNPT, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
1.78 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6405-O Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 3/4-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Shane M on Sep 27, 2025, 4:50 PM
trying to hook a 3/4-16 male ORB port to a 3/4-14 female npsm swivel, is that what this adapter does?
Answer by: Customer Support on Sep 29, 2025, 6:47 AM
For tying those two thread styles together, this piece is set up with a male SAE O-ring boss on one side (3/4-16, SAE J514) and a female NPSM on the other (3/4-14, SAE J476). It also uses an NBR O-ring on the ORB end for sealing.
Question by: Dwayne L on Sep 9, 2025, 2:35 PM
what thread type does the male end on this adapter use, and is it got an o-ring built in or do I need to supply my own seal?
Answer by: Customer Support on Sep 11, 2025, 7:55 AM
The male end is a SAE O-ring boss thread, sized 3/4-16 and built to SAE J514 spec. The o-ring comes with the adapter, it's NBR material, so no separate seal is needed on that end. That's one of the reasons the ORB style connection is popular for hydraulic work, the seal is already part of the fitting.
