10MORB-08FP STRAIGHT

Ask A Question

Description & Features

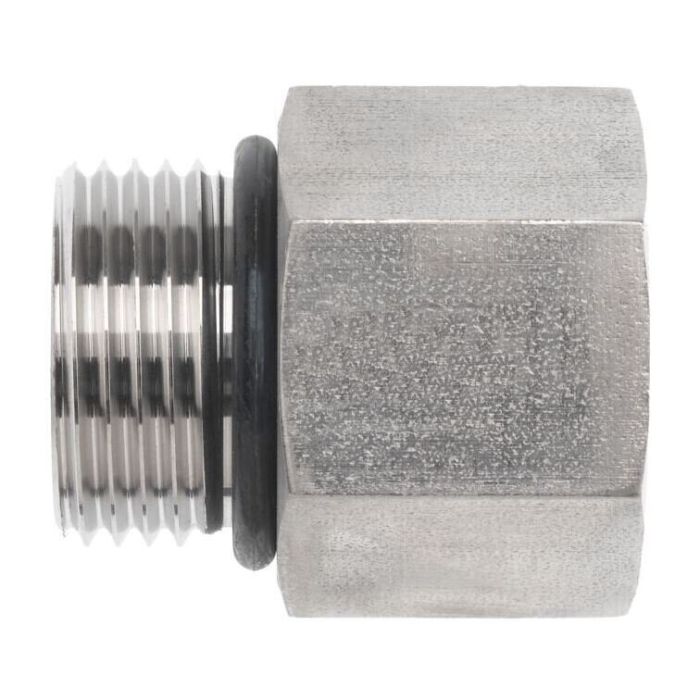

The 10MORB-08FP Straight adapter fabricated from straight steel is engineered to meet the specific requirements of industrial and mechanical applications. Its durable construction ensures reliable performance in demanding environments.

This adapter features a 7/8-14 male SAE O-ring Boss thread (SAE J514) on one end and a 1/2-14 female NPSM thread (SAE J476) on the other. Designed by Brennan Industries Inc the adapter guarantees compatibility with various systems due to its precise threading specifications.

With an overall length of 1.550 mm the adapter accommodates NBR O-rings ensuring a secure seal and leak-proof operation. The robust material and precision engineering deliver dependable connectivity for hydraulic and pneumatic systems.

Supplier Part Number: 6405-10-08-O

MPN: 6405-10-08-O

Specifications

Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
1.63 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/8 in
l Dimensions
1.55 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6405-O Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.484 in
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Jimmy A on Jul 20, 2025, 12:44 PM
thread on the male end is SAE O-ring Boss, but what size exactly and what spec does it follow?
Answer by: Customer Support on Jul 22, 2025, 10:59 AM
The male end runs a 7/8-14 thread and meets SAE J514. That O-ring Boss configuration is what gives you the sealing surface right at the boss face, so you get a solid leak-resistant connection without relying solely on thread engagement. The O-ring material is NBR, which handles most standard hydraulic fluid types without issue.
Question by: Pete K on Oct 6, 2025, 1:14 PM
got a hose end that’s 1/2-14 female npsm. is this the piece that’ll mate up to it and still seal right?
Answer by: Customer Support on Oct 7, 2025, 7:08 PM
On the NPSM side, this adapter has a 1/2-14 female NPSM thread per SAE J476. The seal on the other end is handled by the 7/8-14 male SAE O-ring boss per SAE J514, using an NBR O-ring for a leak-tight connection at that ORB interface.
