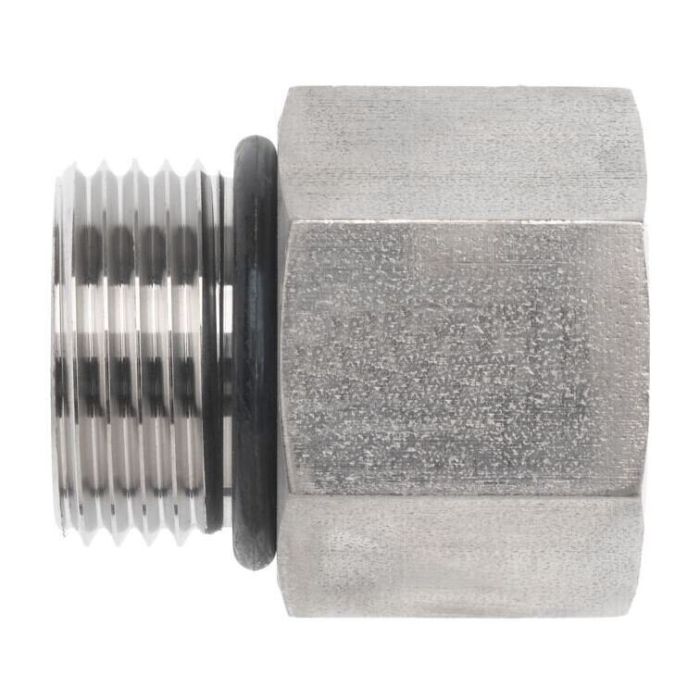

12MORB-04FP STRAIGHT

Ask A Question

Description & Features

Harness the reliability and precision-engineering of Brennan Industries Inc's 12MORB-04FP STRAIGHT adapter. This product is constructed from durable straight steel ensuring longevity in demanding industrial environments.

The 12MORB-04FP STRAIGHT features a male SAE O-ring boss thread with a 1-1/16-12 thread size adhering to SAE J514 specifications. The female NPSM thread sized at 1/4-18 complies with SAE J476 standards providing compatibility with a wide range of industrial equipment.

With an overall length of 1.090 mm and an NBR O-ring this adapter ensures secure connections and efficient fluid transfer. It is part of the 6405-O series recognized for its dependable performance and compatibility with various hydraulic systems.

Professionally designed for use in critical industrial applications this adapter is an essential part for maintaining system integrity and operational efficiency.

Supplier Part Number: 6405-12-04-O

MPN: 6405-12-04-O

Specifications

Connection Size 1
3/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
1.43 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4
l Dimensions
1.09 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6405-O Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.609 in
Thread Size
1-1/16-12 x 1-1/16-12 x 1/4-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Roger B on Jan 11, 2026, 6:49 PM
Reckon this would fit right on my older equipment? I'm using a 1/4-18 female NPSM right now.
Answer by: Customer Support on Jan 13, 2026, 6:50 AM
This adapter is compatible with equipment using a 1/4-18 female NPSM thread, as it features a corresponding male connection adhering to SAE J476 standards. Just make sure the other end, the 1-1/16-12 male SAE O-ring boss, fits your other connection.
Question by: Terry H on Dec 30, 2025, 9:07 PM
thread on the female end is NPSM 1/4-18 -- does that mean it'll hook up to standard 1/4 inch pipe fittings or is NPSM something different I gotta watch out for?
Answer by: Customer Support on Jan 1, 2026, 6:38 AM
NPSM runs on the same 1/4-18 thread pitch as standard NPT pipe fittings, but there's a real difference worth knowing. NPSM is a straight mechanical thread, not a tapered one like NPT. That means it won't seal the same way a tapered pipe thread does. The connection on this adapter relies on the thread engagement per SAE J476, so you'll want to make sure whatever you're mating it to is also NPSM spec and not a tapered NPT port, otherwise you're going to get a poor fit and likely a leak.
Question by: Tommy P on Jan 30, 2026, 7:18 PM
trying to swap out an adapter on a machine, is this one male ORB to female NPSM and what thread sizes are we talkin?
Answer by: Customer Support on Feb 1, 2026, 8:49 AM
You are looking at a straight adapter with a male SAE O-ring boss on one end and a female NPSM on the other. The male ORB side is 1-1/16-12 per SAE J514, and the female NPSM side is 1/4-18 per SAE J476.
