#20 MORB X #24 FP (RIGID)

Description & Features

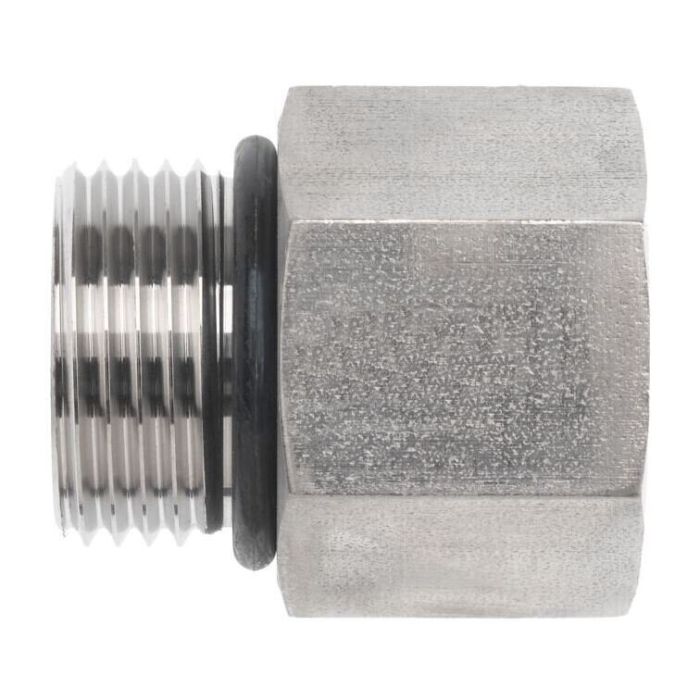

This straight steel fitting features a #20 Male SAE O-Ring Boss (MORB) thread on one end and a #24 Female NPSM thread on the other.

The #20 MORB X #24 FP (RIGID) fitting conforms to SAE J514 standards for the MORB connection and SAE J476 for the NPSM connection. It has an overall length of 2.300 mm. The O-ring seal is made of NBR.

SKU: 6405-20-24-O

Supplier Part Number (MPN): 6405-20-24-O

Alternate Part Numbers: 2216-20-24S, 6405-20-24, A2216-24-20S, C1BX61

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
FNPT, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
2.3 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2.38 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6405-O Series
Thread 2 Drill Dimensions
1.5 in
Thread B1 Drill Dimensions
1.078 in
Thread Size
1-5/8-12 x 1-1/2-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
02MORB-02FP STRAIGHT

6405-02-02-O

1/8 in

1/8 in

5/16-24 x 1/8-27

03MORB-02FP STRAIGHT

6405-03-02-O

3/16 in

1/8 in

3/8-24 x 1/8-27

03MORB-04FP STRAIGHT

6405-03-04-O

3/16 in

1/4 in

3/8-24, 1/4-18

04MORB-02FP STRAIGHT

6405-04-02-O

1/4 in

1/8 in

1/8-27, 7/16-20

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-04-04-O Female NPT To Male ORB Adapter

1/4 in

1/4 in

7/16-20, 1/4-18

Steel Adapter, 3/8-18 Female NPT To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-04-06-O Female NPT To Male ORB Adapter

1/4 in

3/8 in

7/16-20 x 3/8-18

Steel Adapter, 1/8-27 Female NPT To 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-05-02-O Female NPT To Male ORB Adapter

5/16 in

1/8 in

1/2-20 x 1/8-27

05MORB-04FP STRAIGHT

6405-05-04-O

5/16 in

1/4 in

1/2-20 x 1/4-18

05MORB-06FP STRAIGHT

6405-05-06-O

5/16 in

3/8 in

1/2-20 x 3/8-18

06MORB-02FP STRAIGHT

6405-06-02-O

3/8 in

1/8 in

9/16-18 x 1/8-27

06MORB-04FP Straight

6405-06-04-O

3/8 in

1/4 in

1/4-18 x 9/16-18

Steel Adapter, 3/8-18 Female NPT To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-06-06-O Female NPT To Male ORB Adapter

3/8 in

3/8 in

3/8-18, 9/16-18

Steel Adapter, 1/2-14 Female NPT To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-06-08-O Female NPT To Male ORB Adapter

3/8 in

1/2 in

1/2-14 x 9/16-18

ADAPTER

6405-08-02-O

1/2 in

1/8 in

3/4-16 x 1/8-27

Steel Adapter, 1/4-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-08-04-O Female NPT To Male ORB Adapter

1/2 in

1/4 in

3/4-16, 1/4-18

08MORB-06FP STRAIGHT

6405-08-06-O

1/2 in

3/8 in

3/4-16 x 3/8-18

08MORB-08FP STRAIGHT

6405-08-08-O

1/2 in

1/2 in

3/4-16 x 1/2-14

08MORB-12FP STRAIGHT

6405-08-12-O

1/2 in

3/4 in

3/4-16 x 3/4-14

Steel Adapter, 1/4-18 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-10-04-O Female NPT To Male ORB Adapter

5/8 in

1/4 in

7/8-14 x 1/4-18

Steel Adapter, 3/8-18 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-10-06-O Female NPT To Male ORB Adapter

5/8 in

3/8 in

7/8-14 x 3/8-18

10MORB-08FP STRAIGHT

6405-10-08-O

5/8 in

1/2 in

1/2-14 x 7/8-14

10MORB-12FP STRAIGHT

6405-10-12

5/8 in

3/4 in

3/4-14, 7/8-14

12MORB-04FP STRAIGHT

6405-12-04-O

3/4 in

1/4 in

1-1/16-12 x 1-1/16-12 x 1/4-18

#12 MORB X #8 FP (RIGID)

6405-12-08-O

3/4 in

1/2 in

1-1/16-12 x 1/2-14

12MORB-12FP Straight

6405-12-12-O

3/4 in

3/4 in

1-1/16-12 x 3/4-14

Steel Adapter, 1-11-1/2 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-12-16-O Female NPT To Male ORB Adapter

3/4 in

1 in

1-1/16-12 x 1-11-1/2

14MORB-12FP Straight

6405-14-12-O

7/8 in

3/4 in

1-3/16-12 x 3/4-14

ADAPTER

6405-14-16-O

7/8 in

1 in

1-3/16-12 x 1-11-1/2

ADAPTER

6405-16-06-O

1 in

3/8 in

1-5/16-12 x 3/8-18

Steel Adapter, 1/2-14 Female NPT To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-16-08-O Female NPT To Male ORB Adapter

1 in

1/2 in

1-5/16-12 x 1/2-14

16MORB-12FP Straight

6405-16-12-O

1 in

3/4 in

3/4-14, 1-5/16-12

16MORB-16FP STRAIGHT

6405-16-16

1 in

1 in

1-5/16-12 x 1-11-1/2 x 1-5/16-12

16MOR-20FP

6405-16-20-O

1 in

1-1/4 in

1-5/16-12 x 1-1/4-11-1/2

-16 morb x -24 fnpt

6405-16-24-O

1 in

1-1/2 in

1-5/16-12 x 1-1/2-11-1/2

Steel Adapter, 3/4-14 Female NPT To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-20-12-O Female NPT To Male ORB Adapter

1-1/4 in

3/4 in

1-5/8-12 x 3/4-14

20MORB-16FP STRAIGHT

6405-20-16

1-1/4 in

1 in

1-5/8-12 x 1-11-1/2

20MORB-20FP Straight

6405-20-20-O

1-1/4 in

1-1/4 in

1-1/4-11-1/2, 1-5/8-12

BRENNAN STR ADAP - 1-1/4M ORB X 2F PR

6405-20-32-O

1-1/4 in

2 in

1-5/8-12 x 2-11-1/2

BRENNAN 24 ORING BOSS TO 1/2 FEM BUSHING

6405-24-08-O

1-1/2 in

1/2 in

1-7/8-12 x 1/2-14

ADAPTER

6405-24-12-O

1-1/2 in

3/4 in

1-7/8-12 x 3/4-14

Steel Adapter, 1-11-1/2 Female NPT To 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-24-16-O Female NPT To Male ORB Adapter

1-1/2 in

1 in

1-7/8-12, 1-11-1/2

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6405-24-20-O Female NPT To Male ORB Adapter

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-7/8-12

24MORB-24FP STRAIGHT

6405-24-24-O

1-1/2 in

1-1/2 in

1-7/8-12, 1-1/2-11-1/2

Brennan

6405-32-16-O

2 in

1 in

2-1/2-12 x 1-11-1/2

32MORB-20FP STRAIGHT

6405-32-20-O

2 in

1-1/4 in

2-1/2-12 x 1-1/4-11-1/2

32MORB-24FP STRAIGHT

6405-32-24-O

2 in

1-1/2 in

2-1/2-12 x 1-1/2-11-1/2

32MORB-32FP STRAIGHT

6405-32-32-O

2 in

2 in

2-1/2-12 x 2-11-1/2

Product Questions & Answers (1)

Question by: Jimmy W on Sep 29, 2025, 8:14 PM
thread on the female end is NPSM, not NPT, does that matter for how it seals up?
Answer by: Customer Support on Sep 30, 2025, 8:56 PM
NPSM is a straight mechanical thread, so it relies on a mating fitting or surface to create the seal rather than thread taper the way NPT does. NPT threads are tapered and generate a seal through thread interference, which is a different sealing method entirely. If your port or hose end is NPT, this fitting won't give you a proper seal. Make sure the female side of your connection is also NPSM before ordering.
