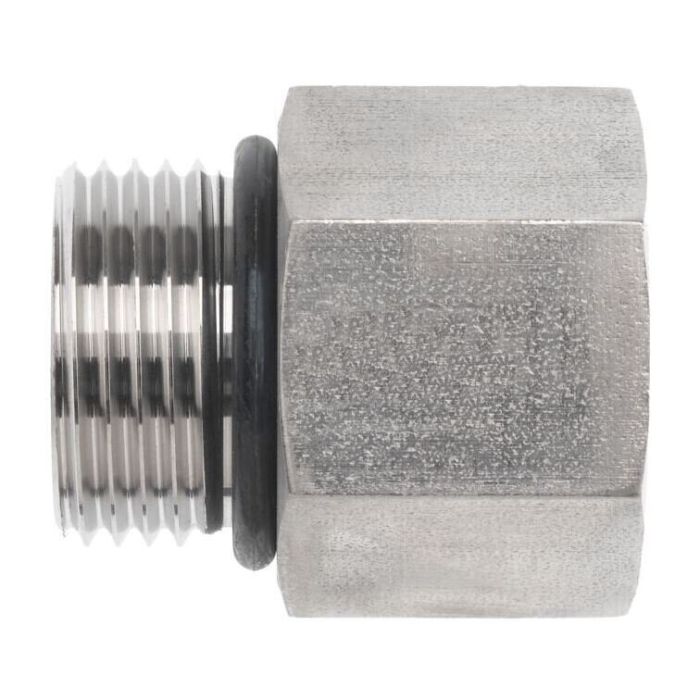

main product photo

Brennan

Ask A Question

Description & Features

This straight fitting features a male SAE O-ring boss thread on one end and a female NPSM thread on the other. The thread sizes are 2-1/2-12 and 1-11-1/2 respectively, conforming to SAE J514 and SAE J476 specifications.

Constructed from raw steel with an NBR O-ring seal, this Brennan fitting from the 6405-O series provides a reliable connection in hydraulic applications. The 32MORB-16FP Straight has an overall length of 1.430 mm.

SKU: 6405-32-16-O

Supplier Part Number (MPN): 6405-32-16-O

Specifications

Connection Size 1
2 in
Connection Size 2
1 in
Connection Type
FNPT, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
2.03 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-3/4 in
l Dimensions
1.43 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6405-O Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
1.781 in
Thread Size
2-1/2-12 x 1-11-1/2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Roy S on Apr 14, 2025, 4:09 PM
got a port that’s 2-1/2-12 SAE o-ring boss on one side and i need to go to a 1-11-1/2 female npsm, is that what this fitting is?
Answer by: Customer Support on Apr 16, 2025, 7:54 AM
Built for that exact thread change, it has a male SAE O-ring boss on the B1 end (2-1/2-12 per SAE J514) and a female NPSM on the B2 end (1-11-1/2 per SAE J476).
