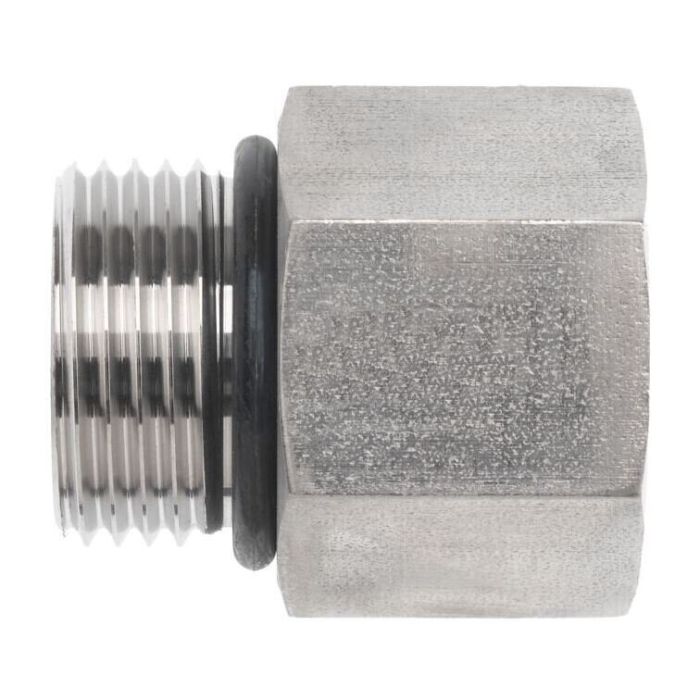

main product photo

32MORB-24FP STRAIGHT

Ask A Question

Description & Features

This straight fitting, part number 32MORB-24FP, features a male SAE O-ring Boss on one end and a female NPSM connection on the other. This fitting is constructed from steel and utilizes an NBR O-ring seal.

The male SAE O-ring Boss thread (B1) measures 2-1/2-12 with SAE J514 specification, while the female NPSM thread (B2) measures 1-1/2-11-1/2 with SAE J476 specification.

SKU: 6405-32-24-O

Supplier Part Number (MPN): 6405-32-24-O

Alternate Part Numbers: 6405-32-24, A2216-24-32S

Specifications

Connection Size 1
2 in
Connection Size 2
1-1/2 in
Connection Type
FNPT, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPTF
Dimension Standards
SAE J1926, SAE J476, SAE J514
Dimensions
2.12 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-3/4 in
l Dimensions
2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6405-O Series
Thread 2 Drill Dimensions
1.5 in
Thread B1 Drill Dimensions
1.781 in
Thread Size
2-1/2-12 x 1-1/2-11-1/2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rex T on Oct 2, 2025, 12:17 PM
Reckon this would be the right fitting to go from a SAE O-ring boss to a female NPSM?
Answer by: Customer Support on Oct 3, 2025, 6:50 PM
That's exactly what this straight fitting is made for. It has a male SAE O-ring Boss on one end and a female NPSM connection on the other.
