02MORB EXTERNAL HEX PLUG

Description & Features

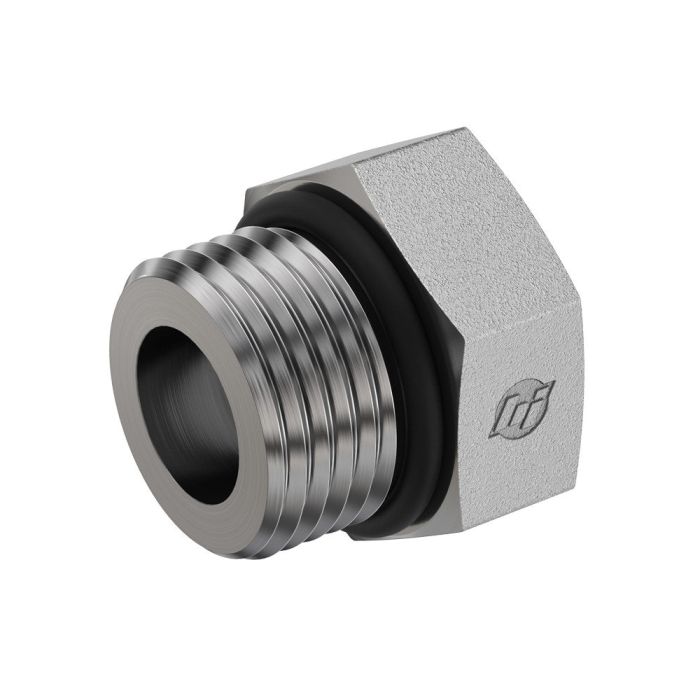

This straight steel 02MORB EXTERNAL HEX PLUG features a male SAE O-ring Boss thread and an external hex head plug.

It conforms to SAE J514 standards with a B1 thread size of 5/16-24 and a B1 drill of 0.062 mm. The O-ring seal is made from NBR material. Its overall length is 0.600 mm.

SKU: 6408-02-O

Supplier Part Number (MPN): 6408-02-O

Alternate Part Numbers: 6408-02, A900598-2S

Specifications

Brand BRENNAN	Connection Size 1 1/8 in	Connection Type Male SAE ORB	Connection Type 1 Male SAE ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 0.6 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 7/16 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6408-O Series	Thread B1 Drill Dimensions 0.062 in	Thread Size 5/16-24

Product Questions & Answers (1)

Question by: Cody S on Jun 28, 2025, 7:43 AM

What size wrench do I need for this plug? Just wanna make sure I have the right tools handy.

Answer by: Customer Support on Jun 30, 2025, 6:50 AM

This plug features an external hex head, so you'll need a wrench sized appropriately for that external hex.
