05MORB EXTERNAL HEX PLUG

Description & Features

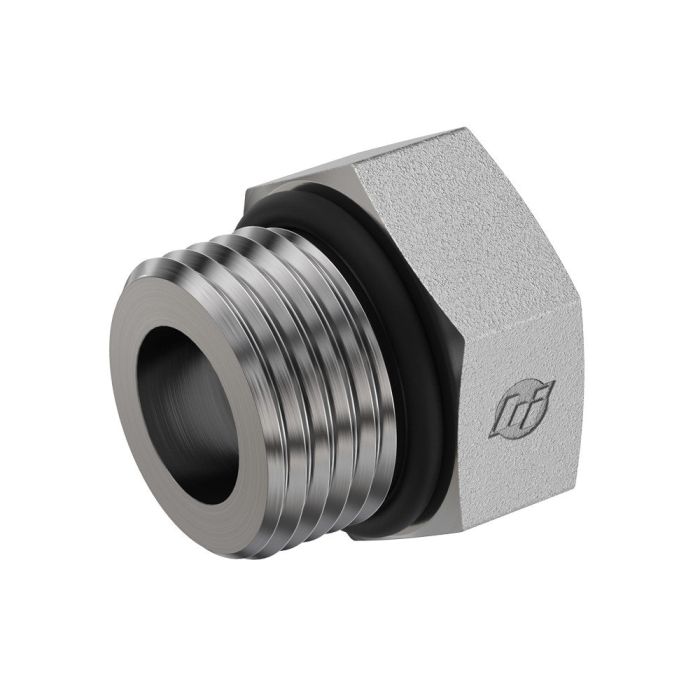

The 05MORB External Hex Plug by Brennan Industries Inc is designed for applications that require a reliable and durable sealing solution. Manufactured from high-quality straight steel this plug ensures long-lasting performance. It features a male SAE O-ring boss thread type with a thread size of 1/2-20 meeting SAE J514 specifications. The external hex head design facilitates easy installation and removal.

Equipped with an NBR O-ring the 05MORB plug provides effective sealing in demanding environments. The overall length of 0.670 mm makes it a compact yet robust component suitable for various industrial applications. Its versatility is further enhanced by the 0.234 mm drill size ensuring compatibility with multiple setups.

California Residents: PROP-65 WARNING

Supplier Part Number: 6408-05-O

Specifications

Brand
BRENNAN
Connection Size 1
5/16 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
0.67 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
5/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6408-O Series
Thread B1 Drill Dimensions
0.234 in
Thread Size
1/2-20

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
02MORB EXTERNAL HEX PLUG

6408-02-O

1/8 in

5/16-24

7/16 in

04MORB EXTERNAL HEX PLUG

6408-04-O

1/4 in

7/16-20

0.563 in

06MORB EXTERNAL HEX PLUG

6408-06-O

3/8 in

9/16-18

11/16 in

08MORB EXTERNAL HEX PLUG

6408-08-O

1/2 in

3/4-16

7/8 in

MB EXTERNAL HEX PLUG W/O O-RING

6408-10

5/8 in

7/8-14

1 x 1 in

12MORB EXTERNAL HEX PLUG

6408-12-O

3/4 in

1-1/16-12

1-1/4

16MORB EXTERNAL HEX PLUG

6408-16-O

1 in

1-5/16-12

1-1/2 in

20MORB EXTERNAL HEX PLUG

6408-20

1-1/4 in

1-5/8-12

1-7/8 in

24MORB EXTERNAL HEX PLUG

6408-24-O

1-1/2 in

1-7/8-12

2-1/8 in

32MORB EXTERNAL HEX HEAD PLUG

6408-32-O

2 in

2-1/2-12

2-3/4 in

Product Questions & Answers (2)

Question by: Dustin O on Jul 4, 2025, 12:13 PM
What size wrench do I need for this plug?
Answer by: Customer Support on Jul 6, 2025, 6:14 AM
This external hex head design makes installation and removal pretty straightforward with standard tools.
Question by: Ray S on Apr 11, 2025, 8:30 PM
thread size on this one is 1/2-20, that right? just want to make sure before I order a handful of em
Answer by: Customer Support on Apr 13, 2025, 7:35 AM
1/2-20 is correct. It's a male SAE O-ring boss thread, built to SAE J514 spec. That's a pretty common size in hydraulic systems, so if your port calls for a 1/2-20 MORB plug, this one fits the bill.
