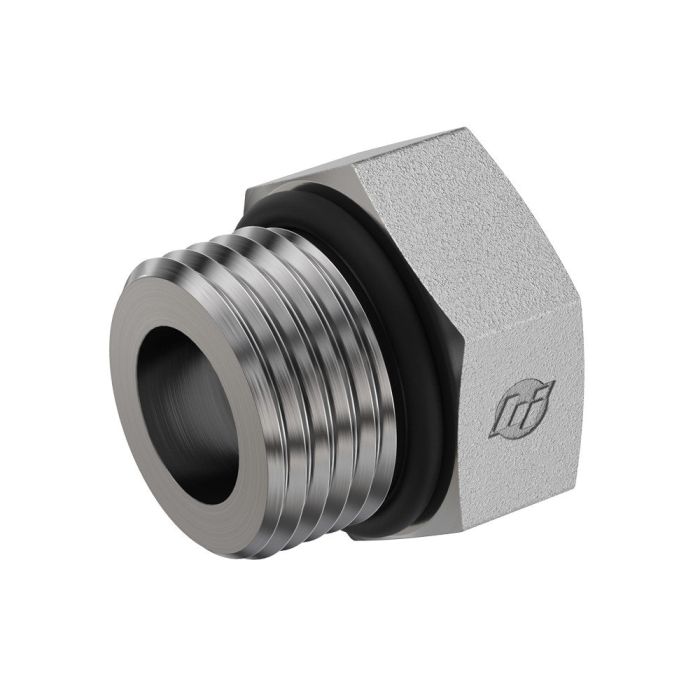

08MORB EXTERNAL HEX PLUG

Description & Features

The 08MORB External Hex Plug from Brennan Industries Inc is an essential component designed for industrial applications. This straight steel plug features a male SAE O-ring boss thread type adhering to the SAE J514 specification ensuring reliability and compliance with industry standards.

Equipped with a durable NBR O-ring this external hex head plug provides effective sealing capabilities. With an overall length of 0.800 mm and a thread B1 size of 3/4-16 it is designed to fit seamlessly into various setups.

Ideal for demanding environments the 6408-O series plug offers a robust and secure connection for critical industrial systems. The external hex head design facilitates straightforward installation and removal making it a practical choice for maintenance and assembly tasks.

Supplier Part Number: 6408-08-O

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
0.8 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6408-O Series
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
02MORB EXTERNAL HEX PLUG

6408-02-O

1/8 in

5/16-24

7/16 in

04MORB EXTERNAL HEX PLUG

6408-04-O

1/4 in

7/16-20

0.563 in

05MORB EXTERNAL HEX PLUG

6408-05-O

5/16 in

1/2-20

5/8 in

06MORB EXTERNAL HEX PLUG

6408-06-O

3/8 in

9/16-18

11/16 in

MB EXTERNAL HEX PLUG W/O O-RING

6408-10

5/8 in

7/8-14

1 x 1 in

12MORB EXTERNAL HEX PLUG

6408-12-O

3/4 in

1-1/16-12

1-1/4

16MORB EXTERNAL HEX PLUG

6408-16-O

1 in

1-5/16-12

1-1/2 in

20MORB EXTERNAL HEX PLUG

6408-20

1-1/4 in

1-5/8-12

1-7/8 in

24MORB EXTERNAL HEX PLUG

6408-24-O

1-1/2 in

1-7/8-12

2-1/8 in

32MORB EXTERNAL HEX HEAD PLUG

6408-32-O

2 in

2-1/2-12

2-3/4 in

Product Questions & Answers (1)

Question by: Hank E on Jul 5, 2025, 6:57 PM
trying to swap out a plug i’ve got now, is this one the 3/4-16 male o-ring boss style?
Answer by: Customer Support on Jul 7, 2025, 5:34 PM
It’s a male SAE O-ring boss plug with a 3/4-16 B1 thread, built to the SAE J514 spec. It seals with an NBR O-ring and uses an external hex head for install and removal.
