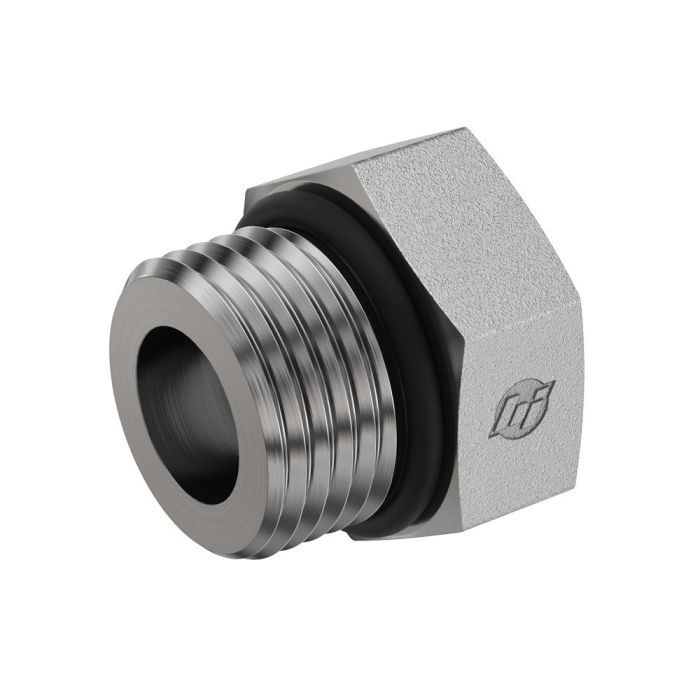

16MORB EXTERNAL HEX PLUG

Ask A Question

Description & Features

The Brennan Industries Inc 16MORB External Hex Head Plug is designed to meet the highest industry standards. Made from straight steel it provides durability and reliability.

This plug features a male SAE O-ring boss with specifications in accordance with SAE J514 ensuring a secure fit. The external hex head plug design further simplifies installation and maintenance.

With an overall length of 1.120 mm this plug is suitable for various industrial applications. The NBR O-ring/seal material offers excellent resistance to oils and chemicals.

The thread size measures at 1-5/16-12 with a drill diameter of 0.844 mm. This precision engineering ensures optimal performance and longevity.

Supplier Part Number: 6408-16-O

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.12 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5500 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6408-O Series
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12

Product Questions & Answers (2)

Question by: Scott H on Jan 21, 2026, 9:34 PM
thread size on this one is 1-5/16-12, that right? just want to make sure before i order a handful of em
Answer by: Customer Support on Jan 23, 2026, 7:55 PM
that's correct. The thread is 1-5/16-12, male SAE O-ring boss, and it meets SAE J514 spec. If you're running a port that matches that configuration, you're good to go.
Question by: Lee W on May 9, 2025, 8:30 PM
Is this plug made to handle oil and chemicals alright?
Answer by: Customer Support on May 11, 2025, 6:36 AM
the NBR O-ring/seal material is made to hold up well against oils and chemicals. You shouldn't have any problems there.
