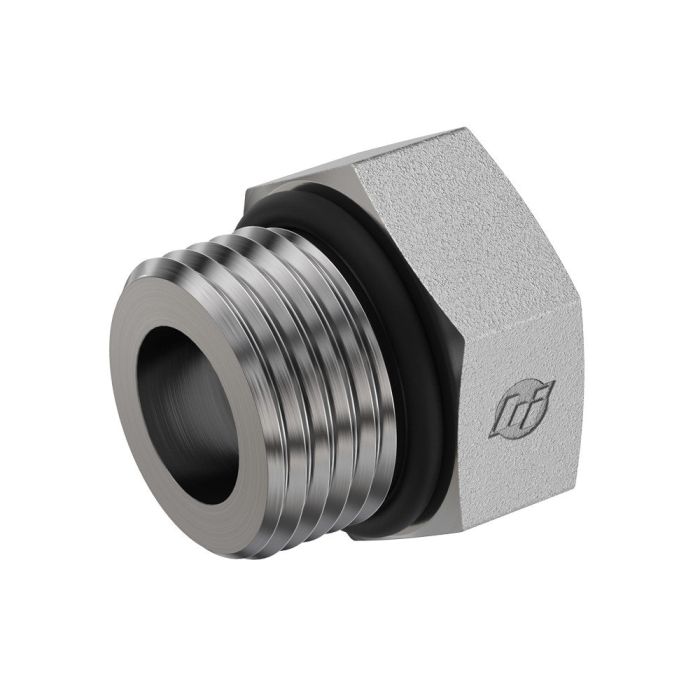

20MORB EXTERNAL HEX PLUG

Ask A Question

Description & Features

The 20MORB External Hex Plug by Brennan Industries Inc is designed for industrial applications requiring precise and secure connections. Expertly crafted for robustness this plug ensures durable and leak-resistant performance.

Engineered without an adjustable end or calibration features it offers straightforward functionality suited for various configurations. The external hex design facilitates easy installation and removal providing an efficient solution for assembly and maintenance tasks.

This hex plug does not include additional components such as batteries blades or a case focusing exclusively on its core purpose. It is devoid of electrical flags check valves and remote control features emphasizing its specialization in mechanical connections.

Thread sealant is not included enabling customization based on specific requirements. The 20MORB External Hex Plug eliminates the need for color coding or machine mounting simplifying the selection process for users.

Supplier Part Number: 6408-20-O

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE ORB
Dimension Standards
SAE J1926
Dimensions
1.2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
1-7/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
6408-O Series
Thread Size
1-5/8-12

Product Questions & Answers (1)

Question by: Johnny A on Mar 28, 2026, 6:30 PM
does this plug require any kind of thread sealant, or do I need to pick that up separate?
Answer by: Customer Support on Mar 30, 2026, 6:58 AM
Thread sealant is not included with this plug, so you'd need to source that on your own based on whatever your setup calls for. That actually works in your favor since it lets you choose the sealant that fits your specific application rather than being locked into something pre-applied.
