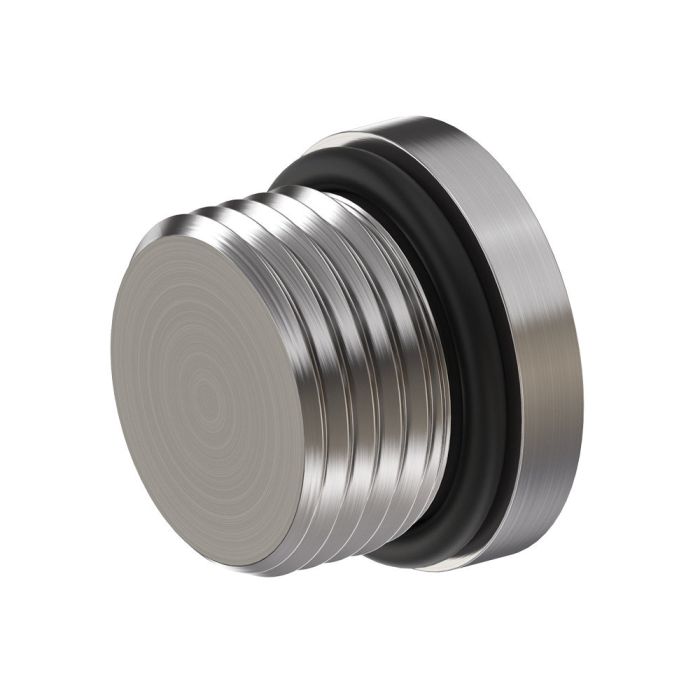

03MORB HOLLOW HEX PLUG

Description & Features

Designed for use in Male SAE O-Ring Boss ports, the 03Morb Hollow Hex Plug provides a reliable sealing solution in hydraulic systems where a port needs to be closed off without sacrificing thread integrity. Conforming to SAE J514, it features a 3/8-24 thread and an external hex head for straightforward installation with standard tooling.

Constructed from straight steel, this plug incorporates an NBR O-ring seal, which provides effective resistance to petroleum-based hydraulic fluids across a broad range of operating conditions. With an overall length of 0.400 mm, it is suited to compact manifold and valve body applications where space is a consideration. The hollow hex configuration allows for consistent torque application during assembly.

SKU: 6408-H03-O

Supplier Part Number (MPN): 6408-H03-O

Alternate Part Numbers: 6408-HHP-03, AFF2138-03S

Specifications

Brand
BRENNAN
Connection Size 1
3/16 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
0.4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6408-H-O Series
Thread B1 Drill Dimensions
0.125 in
Thread Size
3/8-24

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
02MORB HOLLOW HEX PLUG

6408-H02-O

1/8 in

5/16-24

04MORB HOLLOW HEX PLUG

6408-H04-O

1/4 in

7/16-20

05MORB HOLLOW HEX PLUG

6408-H05-O

5/16 in

1/2-20

08MORB HOLLOW HEX PLUG

6408-H08-O

1/2 in

3/4-16

10 HP50N

6408-H10-O

5/8 in

7/8-14

3/8 in

14MORB HOLLOW HEX PLUG

6408-H14-O

7/8 in

1-3/16-12

0.563 in

16MORB HOLLOW HEX PLUG

6408-H16-O

1 in

1-5/16-12

5/8 in

24MORB HOLLOW HEX PLUG

6408-H24-O

1-1/2 in

1-7/8-12

3/4 in

32MORB HOLLOW HEX PLUG

6408-H32-O

2 in

2-1/2-12

3/4 in

06MORB HOLLOW HEX PLUG

6408-HHP-06

3/8 in

9/16-18

1/4 in

12MORB HOLLOW HEX PLUG

6408-HHP-12

3/4 in

1-1/16-12

0.563 in

20MORB HOLLOW HEX PLUG

6408-HHP-20

1-1/4 in

1-5/8-12

3/4 in

Product Questions & Answers (1)

Question by: Melvin H on Apr 17, 2025, 12:58 PM
Will this plug hold up to regular use in a hydraulic setup, or is it more for just sealing things off temporarily?
Answer by: Customer Support on Apr 19, 2025, 10:59 AM
Designed for reliable sealing in hydraulic systems, the 03Morb Hollow Hex Plug is constructed from straight steel and includes an NBR O-ring, offering effective resistance to petroleum-based hydraulic fluids under a variety of operating conditions.
