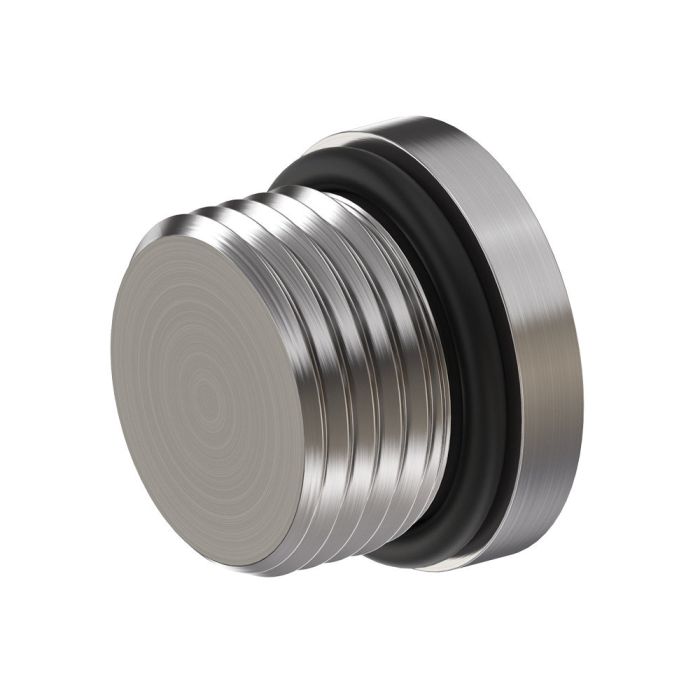

08MORB HOLLOW HEX PLUG

Description & Features

Designed for sealing unused ports in hydraulic manifolds, valves, and fittings, the 08Morb Hollow Hex Plug provides a reliable, pressure-rated closure for 1/2" Male O-Ring Boss (ORB) port connections. The hollow hex drive allows installation with a standard hex key or Allen wrench, making it well suited for confined mounting surfaces where a wrench-flat plug would be difficult to seat.

O-Ring Boss fittings are widely used in hydraulic circuits where leak-free sealing is critical. This plug retains a face-seating O-ring that conforms to the port surface, minimizing the risk of thread-induced leakage common with tapered thread designs. It is a practical choice for port blanking in mobile hydraulic equipment, industrial machinery, and power unit assemblies.

SKU: 6408-H08-O

Supplier Part Number (MPN): 6408-H08-O

Alternate Part Numbers: 1046-1470, 6408-HHP-08, AFF2138-08S

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE ORB
Dimension Standards
SAE J1926
Dimensions
0.58 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
6408-H-O Series
Thread Size
3/4-16

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
02MORB HOLLOW HEX PLUG

6408-H02-O

1/8 in

5/16-24

03MORB HOLLOW HEX PLUG

6408-H03-O

3/16 in

3/8-24

04MORB HOLLOW HEX PLUG

6408-H04-O

1/4 in

7/16-20

05MORB HOLLOW HEX PLUG

6408-H05-O

5/16 in

1/2-20

10 HP50N

6408-H10-O

5/8 in

7/8-14

3/8 in

14MORB HOLLOW HEX PLUG

6408-H14-O

7/8 in

1-3/16-12

0.563 in

16MORB HOLLOW HEX PLUG

6408-H16-O

1 in

1-5/16-12

5/8 in

24MORB HOLLOW HEX PLUG

6408-H24-O

1-1/2 in

1-7/8-12

3/4 in

32MORB HOLLOW HEX PLUG

6408-H32-O

2 in

2-1/2-12

3/4 in

06MORB HOLLOW HEX PLUG

6408-HHP-06

3/8 in

9/16-18

1/4 in

12MORB HOLLOW HEX PLUG

6408-HHP-12

3/4 in

1-1/16-12

0.563 in

20MORB HOLLOW HEX PLUG

6408-HHP-20

1-1/4 in

1-5/8-12

3/4 in

Product Questions & Answers (1)

Question by: Roy D on Apr 23, 2025, 11:12 AM
Will this plug hold up in a hydraulic system running at, say, 3000 psi?
Answer by: Customer Support on Apr 24, 2025, 9:37 PM
Designed for sealing unused ports in hydraulic manifolds, valves, and fittings, this plug creates a reliable, pressure-rated closure for 1/2" Male O-Ring Boss (ORB) port connections. So it should handle that pressure just fine.
