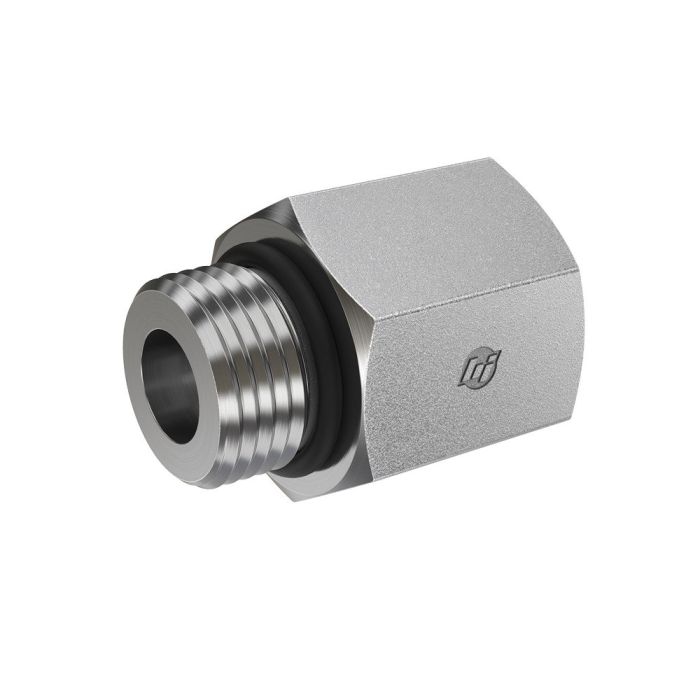

main product photo

-4 MORB X -3 FORB BUSHING

Ask A Question

Description & Features

This high-quality straight steel bushing from Brennan Industries is designed for robust applications requiring reliable connectivity. Featuring a male SAE O-ring boss thread size of 7/16-20 on one end and a female SAE O-ring boss thread size of 3/8-24 on the other, this bushing ensures secure and leak-resistant connections. Conforming to SAE J514 specifications, it is constructed from durable straight steel with an NBR O-ring seal material, making it suitable for demanding industrial environments.

The -4 MORB X -3 FORB BUSHING offers an overall length of 1.100 mm, providing a compact solution for hydraulic systems that demand precision and performance. Its design is tailored for compatibility with various hydraulic applications, ensuring versatility and ease of integration. The PROP-65 warning indicates compliance with California regulations, ensuring safe use in applicable territories.

SKU: 6410-04-03-O

Supplier Part Number (MPN): 6410-04-03-O

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
3/16 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
5/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6410-O Series
Thread 2 Drill Dimensions
0.125 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20 x 3/8-24

Product Questions & Answers (2)

Question by: Cindy R on May 10, 2025, 6:55 PM
what's the thread setup on this bushing, is it a male on one end and female on the other?
Answer by: Customer Support on May 12, 2025, 10:12 AM
That's right. One end is a -4 Male O-Ring Boss with a 7/16-20 thread, and the other is a -3 Female O-Ring Boss running a 3/8-24 thread. Both ends meet SAE J514 spec, so you're working with a standard sizing step-down from a -4 port down to a -3 connection. The o-ring seal material is NBR, which handles most common hydraulic fluids just fine.
Question by: Kirk P on May 19, 2025, 8:48 AM
trying to swap a fitting on a manifold, is this the one that goes from -4 male ORB to -3 female ORB?
Answer by: Customer Support on May 20, 2025, 5:18 PM
It is a straight steel bushing with a -4 Male SAE O-Ring Boss on one side and a -3 Female SAE O-Ring Boss on the other. The thread sizes are 7/16-20 for the male side and 3/8-24 for the female side, both to SAE J514.
