BRENNAN SS ADAPTER 10MORB 8FORB

Description & Features

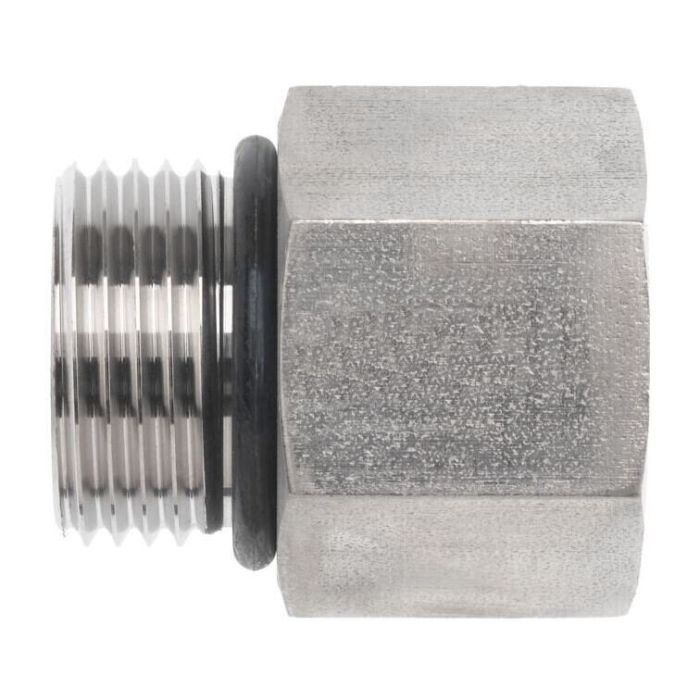

Crafted from straight stainless steel, the Brennan SS Adapter 10MORB 8FORB ensures robust performance and durability in demanding industrial environments. This adapter features a male SAE O-ring boss (ORB) connection on one end with a thread size of 7/8-14, and a female SAE O-ring boss connection on the other end with a thread size of 3/4-16. Both connections adhere to the SAE J514 specification, ensuring compatibility and reliability in hydraulic systems.

The adapter's NBR O-ring seal material provides effective sealing under high-pressure conditions, reducing the risk of leaks. With an overall length of 1.315 mm, this adapter is ideal for applications requiring secure and precise connections in hydraulic circuits. Its design and construction cater to industrial standards, making it a reliable choice for professionals seeking quality and performance.

SKU: 6410-10-08-O-SS

Supplier Part Number (MPN): 6410-10-08-O-SS

Specifications

Brand BRENNAN	Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Female SAE ORB, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Female SAE ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 1.315 in L	Fitting Type Reducer	Hex Size 1 x 1 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 6410-O Series	Thread 2 Drill Dimensions 0.391 in	Thread B1 Drill Dimensions 0.484 in	Thread Size 7/8-14 x 3/4-16

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
6410-06-04-O-SS	3/8 in	1/4 in	9/16-18, 7/16-20	11/16 in
6410-08-06-O-SS	1/2 in	3/8 in	3/4-16, 9/16-18	7/8 in
6410-10-06-O-SS	5/8 in	3/8 in	7/8-14 x 9/16-18	1 x 1 in
6410-12-06-O-SS	3/4 in	3/8 in	1-1/16-12 x 9/16-18	1-1/4
6410-12-08-O-SS	3/4 in	1/2 in	3/4-16 x 1-1/16-12	1-1/4
6410-12-10-O-SS	3/4 in	5/8 in	7/8-14 x 1-1/16-12	1-1/4
6410-16-08-O-SS	1 in	1/2 in	1-5/16-12, 3/4-16	1-1/2 in
6410-16-12-O-SS	1 in	3/4 in	1-5/16-12 x 1-1/16-12	1-1/2 in
6410-20-12-O-SS	1-1/4 in	3/4 in	1-5/8-12 x 1-1/16-12	1-7/8 in
6410-24-08-O-SS	1-1/4 in	1-1/2 in	1-7/8-12, 1-5/8-12	2-1/4 in

Product Questions & Answers (1)

Question by: Brenda R on Aug 24, 2025, 8:21 AM

Will this adapter hold up in a hydraulic system running around 3000 PSI?

Answer by: Customer Support on Aug 26, 2025, 6:46 AM

Absolutely, this adapter is designed for robust performance in demanding industrial environments, including high-pressure hydraulic systems. The NBR O-ring seal is effective at preventing leaks under those conditions.
