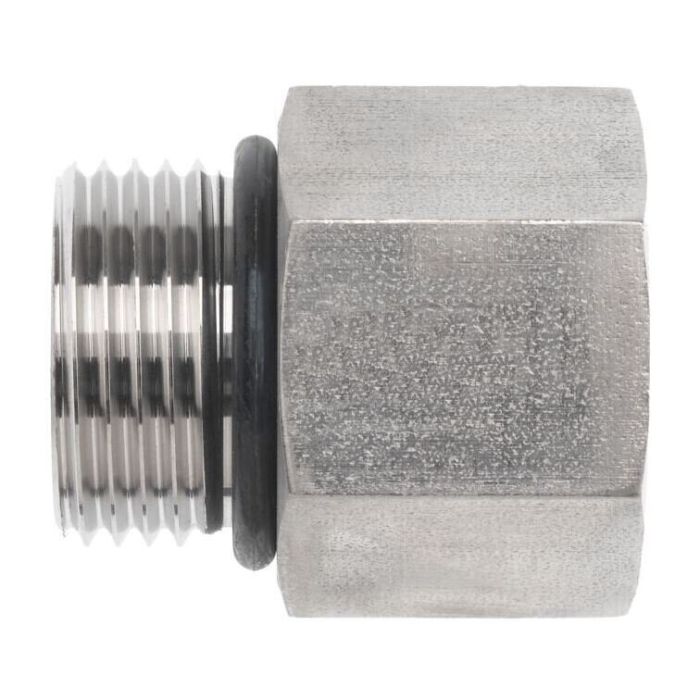

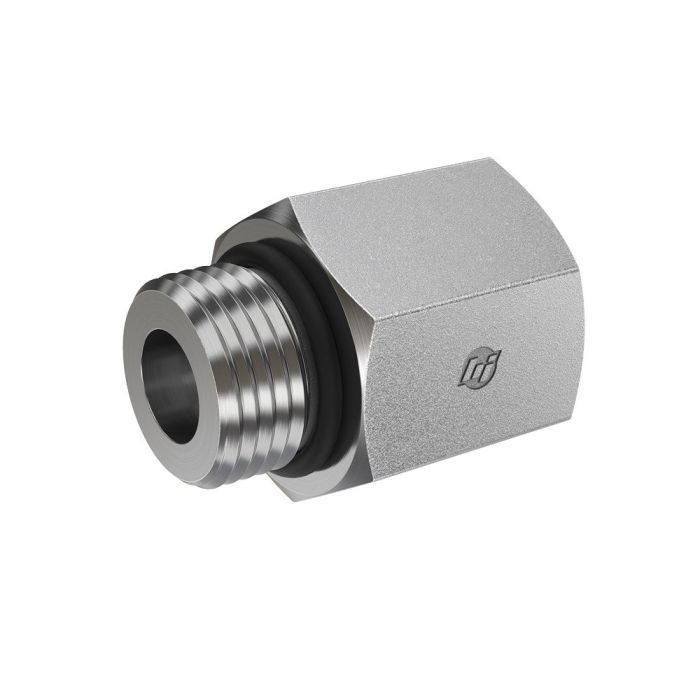

main product photo

FF1010-12-10S ORB BUSHING

Ask A Question

Description & Features

This straight steel bushing, FF1010-12-10S ORB BUSHING, features a 1-1/16-12 male SAE O-ring Boss thread (B1) and a 7/8-14 female SAE O-ring Boss thread (B2), both manufactured to SAE J514 specifications.

The B1 thread drill measures 0.609 mm, while the B2 thread drill measures 0.484 mm. The overall length of this Brennan Industries Inc. fitting is 1.570 mm, with NBR O-ring seal material.

SKU: 6410-12-10-O

Supplier Part Number (MPN): 6410-12-10-O

Alternate Part Numbers: 6410-12-10, AFF1010-1210S

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.57 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-1/4
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6410-O Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.609 in
Thread Size
7/8-14 x 1-1/16-12

Product Questions & Answers (2)

Question by: Roger H on Aug 19, 2025, 2:15 PM
thread sizes on this one got me second-guessing myself. the male end is the bigger of the two, right?
Answer by: Customer Support on Aug 21, 2025, 6:03 AM
Correct. The male SAE O-ring Boss thread measures 1-1/16-12, and the female end is the smaller 7/8-14. So yeah, you're stepping down from the larger male side to the smaller female side. Both threads are built to SAE J514 spec, and the NBR O-ring seal is already part of the fitting, so no separate seal is needed on assembly.
Question by: Ricky E on Jul 21, 2025, 6:21 PM
trying to step a 12 MORB port down to a 10 ORB, is this the right bushing or am i mixing things up
Answer by: Customer Support on Jul 23, 2025, 10:42 AM
For a straight ORB reducer, this one matches that setup. It has a 1-1/16-12 male SAE O-ring Boss on one side (B1) and a 7/8-14 female SAE O-ring Boss on the other side (B2), both to SAE J514.
