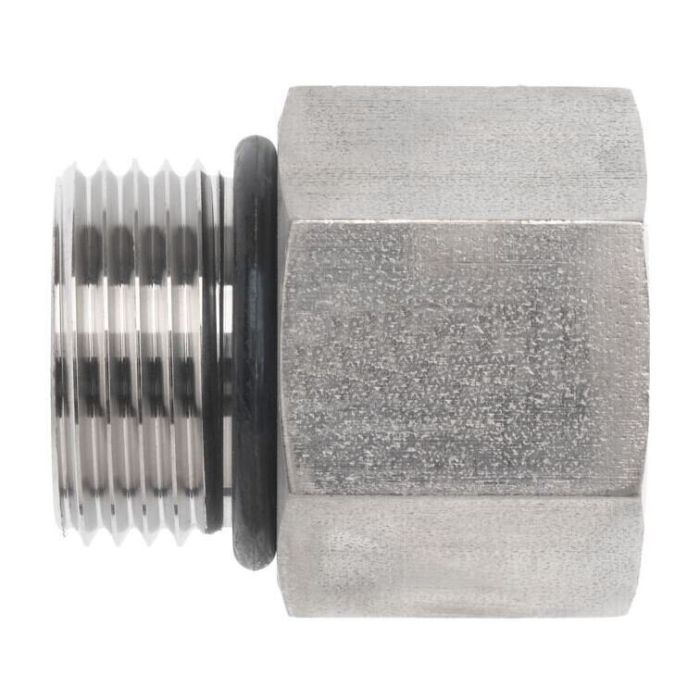

main product photo

BRANNAN SS ADAPTER

Ask A Question

Description & Features

This BRANNAN SS ADAPTER features a straight stainless steel construction and is part of the 6410-O series. It connects using a 1-5/16-12 male SAE O-ring boss thread (SAE J514) and a 3/4-16 female SAE O-ring boss thread (SAE J514).

The adapter's O-ring seal is made from NBR (Nitrile Butadiene Rubber), ensuring a reliable seal in hydraulic applications. This fitting provides a secure and leak-free connection between components with differing thread sizes.

SKU: 6410-16-08-O-SS

Supplier Part Number (MPN): 6410-16-08-O-SS

Specifications

Connection Size 1
1 in
Connection Size 2
1/2 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1 in L
Fitting Type
Reducer
Hex Size
1-1/2 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
4500 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6410-O Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12, 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Shane P on Aug 22, 2025, 3:28 PM
Will this adapter work with standard SAE O-ring fittings?
Answer by: Customer Support on Aug 24, 2025, 6:21 AM
Yes, it is designed to connect components using SAE J514 specifications for both the 1-5/16-12 male and 3/4-16 female O-ring boss threads.
