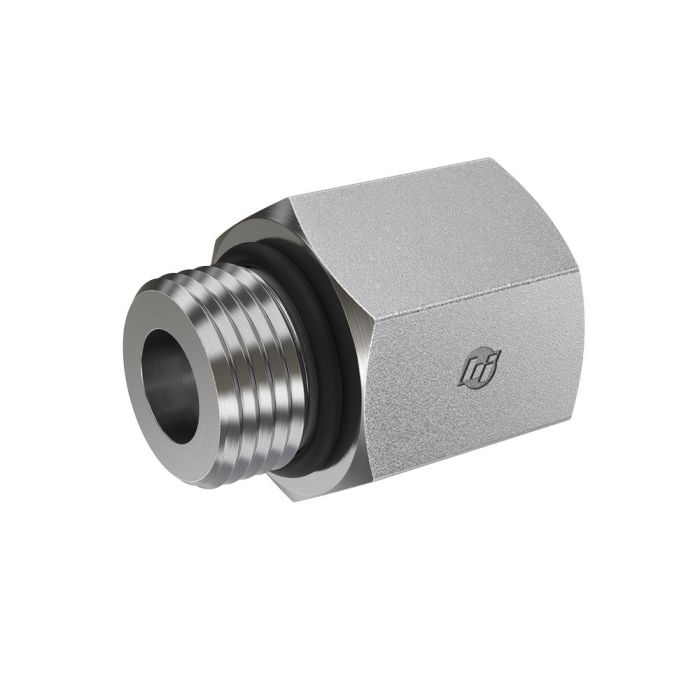

main product photo

20MORB-16FORB STRAIGHT REDUCER

Ask A Question

Description & Features

Crafted from straight steel this versatile component excels in various industrial applications. Its NBR O-ring ensures a secure and leak-free connection making it reliable for demanding environments.

The male SAE O-ring boss with a 1-5/8-12 thread size and female SAE O-ring boss with a 1-5/16-12 thread size both meeting SAE J514 specifications guarantee compatibility and performance. Measuring 1.200 mm in overall length this reducer fits a range of configurations with precision.

With a series specification of 6410-O this product by Brennan Industries Inc stands out for its durability and compliance. Suitable for customers looking for high-quality adapters the 20MORB-16FORB Straight Reducer is a dependable choice.

Supplier Part Number: 6410-20-16-O

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6410-O Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
1.078 in
Thread Size
1-5/8-12 x 1-5/16-12

Product Questions & Answers (2)

Question by: Hugh M on Dec 11, 2025, 3:00 PM
thread sizes on this one got me a little turned around, the male end is the bigger of the two, right?
Answer by: Customer Support on Dec 13, 2025, 12:54 PM
Correct. The male SAE O-ring boss thread measures 1-5/8-12, and the female SAE O-ring boss thread measures 1-5/16-12. So yes, the male end is the larger connection, which is what makes this a reducer rather than a straight union. Both threads conform to SAE J514, so as long as your ports and fittings match those specs, you should have no trouble getting a solid fit.
Question by: Hank C on Feb 27, 2026, 8:15 PM
What size threads does this thing have? I'm needing to hook up two different sized lines.
Answer by: Customer Support on Mar 1, 2026, 3:08 PM
It comes with a male SAE O-ring boss with a 1-5/8-12 thread size on one end, and a female SAE O-ring boss with a 1-5/16-12 thread size on the other. Both meet SAE J514 specs.
