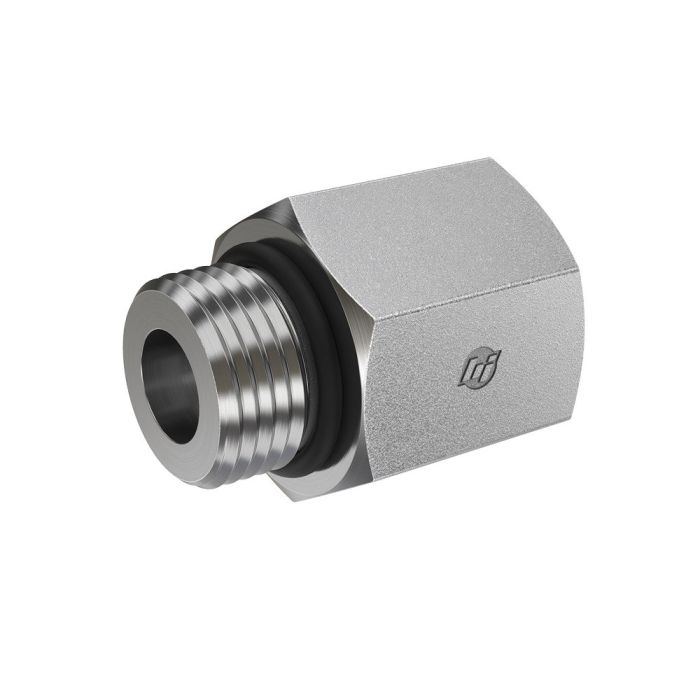

main product photo

24MORB-16FORB STRAIGHT REDUCER

Ask A Question

Description & Features

The 24MORB-16FORB STRAIGHT REDUCER by Brennan Industries Inc is engineered for robust industrial applications. This component is constructed from straight steel ensuring durability and longevity in demanding environments. It features a male SAE O-ring boss thread size of 1-7/8-12 and a female SAE O-ring boss thread size of 1-5/16-12 both compliant with SAE J514 specifications.

Precision-crafted the reducer has an overall length of 1.00 mm optimizing space without compromising performance. O-ring seals are made from NBR providing excellent resistance to wear and temperature variations. This product is part of the 6410-O series renowned for its reliability and high-quality standards.

Supplier Part Number: 6410-24-16-O

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
2-1/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6410-O Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
1.312 in
Thread Size
1-7/8-12 x 1-5/16-12

Product Questions & Answers (3)

Question by: Melvin M on Jan 8, 2026, 7:00 PM
trying to hook a 24 MORB line into a 16 FORB port, is that what this reducer is for?
Answer by: Customer Support on Jan 10, 2026, 6:16 AM
Built for exactly that kind of step-down, it goes from a male SAE O-ring boss thread on one side to a female SAE O-ring boss thread on the other. The male side is 1-7/8-12 and the female side is 1-5/16-12, both to SAE J514.
Question by: Patty C on May 30, 2025, 9:37 PM
Will this reducer hold up to standard hydraulic pressures, or is it more for lower-pressure stuff?
Answer by: Customer Support on Jun 1, 2025, 5:56 PM
Constructed from straight steel, this reducer is built for durability in demanding industrial applications. The SAE J514 specifications for both thread sizes also ensure a robust connection.
Question by: Donna B on Jan 22, 2026, 9:33 PM
thread specs on this one, is the male end a 1-7/8-12 ORB and the female end 1-5/16-12 ORB, or did I read that backwards?
Answer by: Customer Support on Jan 24, 2026, 9:13 PM
You got it right. The male SAE O-ring boss thread is 1-7/8-12 and the female SAE O-ring boss thread is 1-5/16-12. Both ends are built to SAE J514, so if your ports and fittings are spec'd to that standard, you're looking at a solid match.
