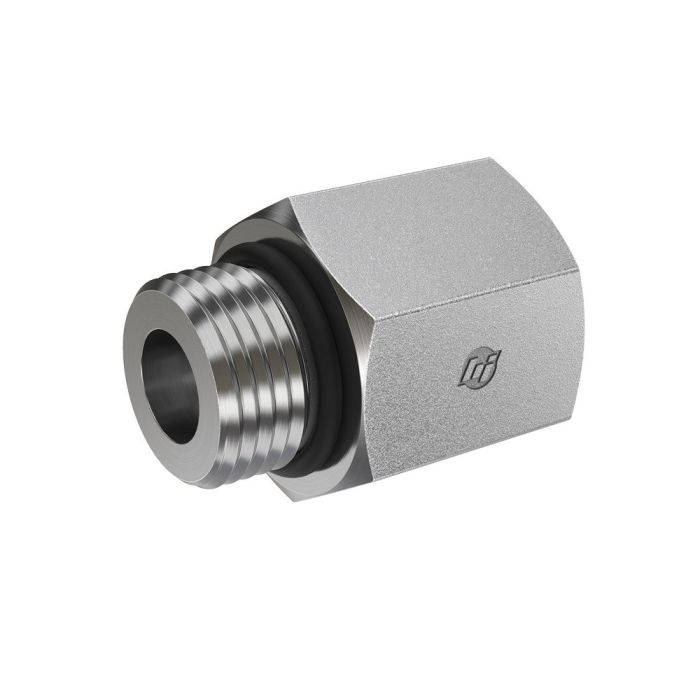

main product photo

32MORB-16FORB Straight REDUCER

Ask A Question

Description & Features

This straight reducer fitting features a male SAE O-ring boss on one end and a female SAE O-ring boss on the other. The 32MORB-16FORB Straight REDUCER is constructed from steel, ensuring durability and reliability in demanding hydraulic applications. It adheres to SAE J514 standards for thread specifications.

The thread sizes are 2-1/2-12 for the male connection and 1-5/16-12 for the female connection. This fitting incorporates an NBR O-ring seal to ensure a secure and leak-free connection.

SKU: 6410-32-16-O

Supplier Part Number (MPN): 6410-32-16-O

Alternate Part Numbers: 6410-32-16, 6410-32-16-0, AFF1010-3216S

Specifications

Brand
BRENNAN
Connection Size 1
2 in
Connection Size 2
1 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
2-3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6410-O Series
Thread 2 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
1.781 in
Thread Size
2-1/2-12 x 1-5/16-12

Product Questions & Answers (1)

Question by: Daryl W on Dec 10, 2025, 5:45 PM
trying to step down from a 2-1/2-12 ORB port to a 1-5/16-12 ORB, is that what this reducer does?
Answer by: Customer Support on Dec 12, 2025, 6:24 AM
For a straight size reduction between SAE O-ring boss threads, it matches that setup. One side is a male SAE ORB with 2-1/2-12 threads, and the other side is a female SAE ORB with 1-5/16-12 threads, both to SAE J514.
