BRENNAN 06FOR-06FP

Description & Features

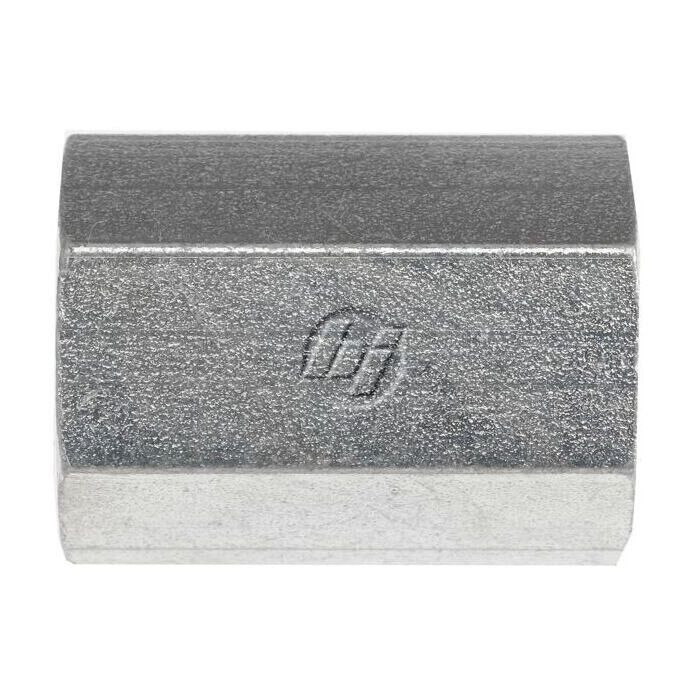

This straight steel fitting, BRENNAN 06FOR-06FP, is part of the 6420 series and features a female SAE O-ring boss thread and a female NPSM thread.

The female SAE O-ring boss thread (B1) measures 9/16-18 with SAE J514 specification, while the female NPSM thread (B2) measures 3/8-18 with SAE J476 specification. Its raw material is straight steel, and it has an overall length of 1.320 mm.

SKU: 6420-06-06

Supplier Part Number (MPN): 6420-06-06

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female SAE ORB, FNPT	Connection Type 1 Female SAE ORB	Connection Type 2 FNPTF	Dimension Standards SAE J1926, SAE J514, SAE J476	Dimensions 1.32 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 7/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series 6420 Series	Thread 2 Drill Dimensions 0.406 in	Thread B1 Drill Dimensions 0.297 in	Thread Size 3/8-18, 9/16-18

Product Questions & Answers (1)

Question by: Debbie D on May 19, 2025, 2:50 PM

Just wanna make sure this here fitting will work with my existing setup... threads are SAE O-ring boss and NPSM, right?

Answer by: Customer Support on May 21, 2025, 6:30 AM

Correct, this fitting features a female SAE O-ring boss thread and a female NPSM thread. The SAE O-ring boss thread is 9/16-18 and meets SAE J514 spec, while the NPSM thread is 3/8-18 and meets SAE J476 spec.
