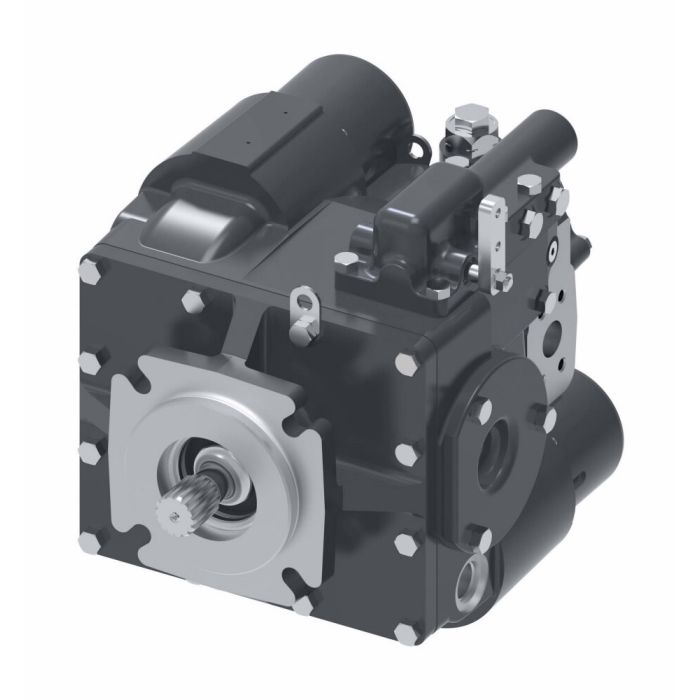

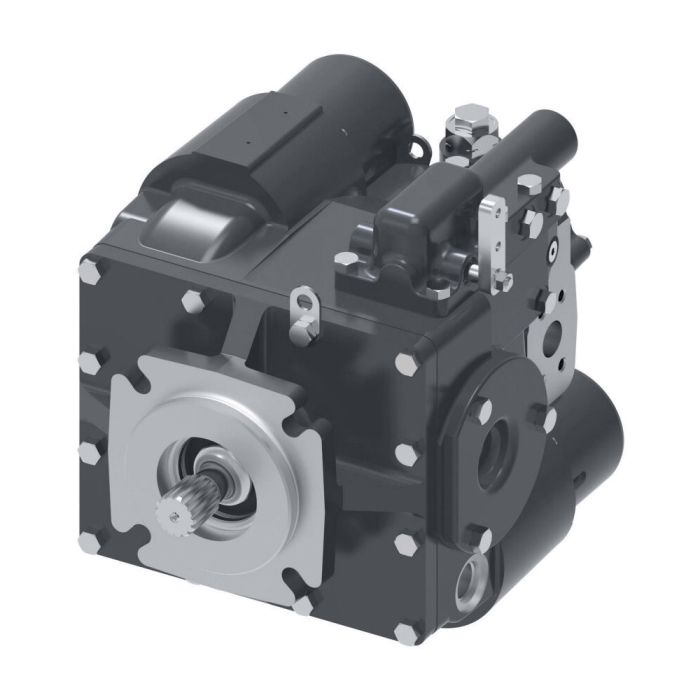

main product photo

ACA642314R0EHHMAD002G0BC30D00000B

Ask A Question

Description & Features

Designed for demanding mobile hydraulic applications, this variable displacement closed circuit piston pump from Danfoss Power Solutions is built to perform reliably across construction, agriculture, truck and bus, and oil and gas environments. The Series 1 heavy duty platform supports multiple control options, giving system designers flexibility in how displacement is managed and adjusted in the field.

The ACA642314R0EHHMAD002G0BC30D00000B features Pro-FX ready compatibility, enabling integration with advanced electronic control architectures for mobile equipment. Its servo control configuration is suited to closed circuit drive systems where precise, responsive pump control is required under variable load conditions.

SKU: 6423-474

Supplier Part Number (MPN): 6423-474

Specifications

Brand
Danfoss
Control Type
Manual
Design Code
B
Dimensions
18.21 in L x 11.96 in W x 12.26 in H
Drive Shaft Type
Splined
Fluid Compatibility
AW Hydraulic Oil, Biodegradable Oil (Vegetable), Engine Oil, Motor Oil
Housing Color
Blue
Housing Material
Iron
Inlet Type
Flanged
Maximum Operating Pressure
6000 psi
Mounting Type
Flanged
Outlet Type
Flanged
Rotation Direction
Clockwise
Seal Material
FKM/HNBR
Segment Code
B
Series
ACA 1 Series

Product Questions & Answers (1)

Question by: Phil G on Jan 3, 2026, 6:25 PM
reckon this'll hold up in some pretty rough conditions, dust and all?
Answer by: Customer Support on Jan 5, 2026, 5:20 PM
Proven reliability in demanding environments is one of the key features of this Danfoss pump, making it suitable for construction, agriculture, and oil and gas applications where dust and other contaminants are common.
