04MJ-04FJS 90 ELB STNLS

Ask A Question

Description & Features

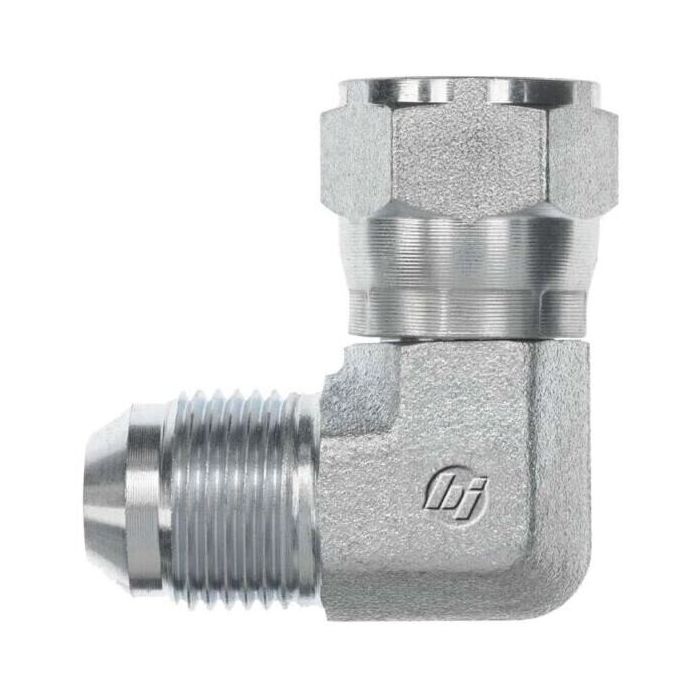

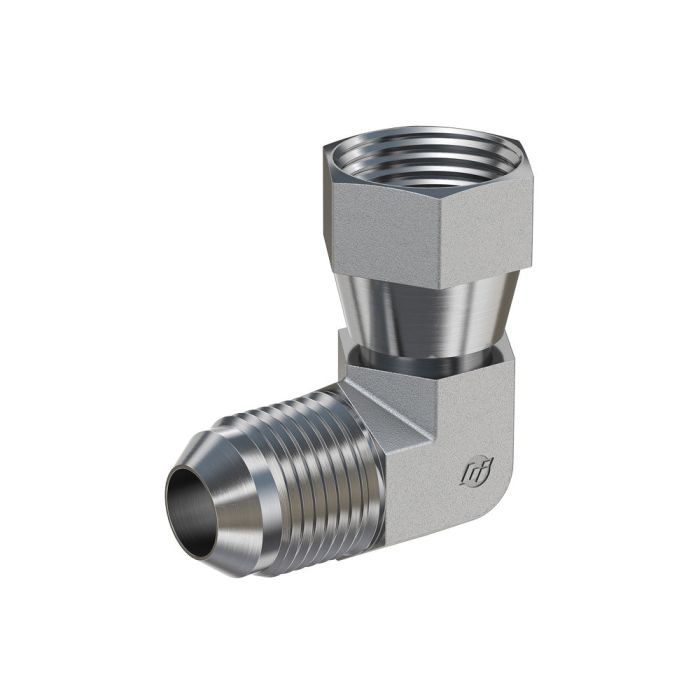

This 90-degree elbow, identified as 04MJ-04FJS 90 ELB STNLS, features a stainless steel construction for durability and corrosion resistance. It is part of the 6500-FG series from Brennan Industries.

The elbow includes a 7/16-20 male JIC 37-degree flare on one end and a 7/16-20 female JIC swivel 37-degree flare on the other, both conforming to SAE J514 specifications. The centerline length is 0.890 inches, with an overall length of 1.000 inch.

SKU: 6500-04-04-SS

Supplier Part Number (MPN): 6500-04-04-SS

Alternate Part Numbers: AJ4SE

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
1 in L
Fitting Type
90 deg Elbow
Hex Size
0.563 x 0.438 in
l2 Dimensions
0.65 in
l Dimensions
1 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
6500-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Lee C on Jan 16, 2026, 1:18 PM
What kind of steel is this elbow made of?
Answer by: Customer Support on Jan 17, 2026, 5:24 PM
This elbow uses a straight stainless steel construction.
