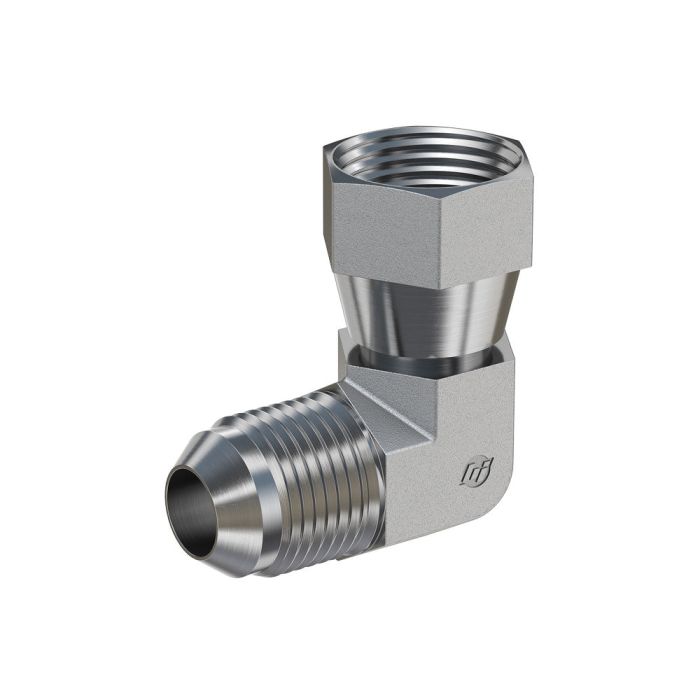

04MJ-04FJS 90 ELB

Ask A Question

Description & Features

The 04MJ-04FJS 90 Elbow adapter is engineered for specialized applications, providing a reliable solution for industry-specific requirements. Manufactured by Brennan Industries Inc, this component features a #4 Male JIC to #4 Female JIC connection at a 90-degree angle.

Designed with precision, this adapter ensures a secure and efficient connection, suitable for various industrial environments. The high-quality materials used in its construction guarantee durability and long-term performance.

With its non-adjustable configuration, the 04MJ-04FJS 90 Elbow adapter offers a straightforward installation and a stable connection without the need for additional adjustments. It is free from unnecessary complexities, focusing on delivering a robust performance.

The 04MJ-04FJS 90 Elbow adapter is ideal for use in demanding settings where reliability and sturdiness are essential. Its design allows it to integrate seamlessly into existing systems, ensuring compatibility and optimal functionality.

Supplier Part Number: 6500-04-04-FG

Specifications

Brand
Brennan Industries
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 x 0.438 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
7500 psi
Operating Temperature
-65 to 500 deg F
Series
6500-FG Series
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Wade B on Jul 31, 2025, 1:50 PM
Does this elbow go male JIC on one end and female JIC on the other, or is it the same fitting type on both sides?
Answer by: Customer Support on Aug 2, 2025, 6:51 AM
Both ends are JIC, yes, but they're not the same. One end is a #4 male JIC and the other is a #4 female JIC, so it's built to connect into an existing JIC line where you need a 90-degree turn without adding a union or extra adapter in between. The angle is fixed, so there's no swivel or adjustment once it's installed.
