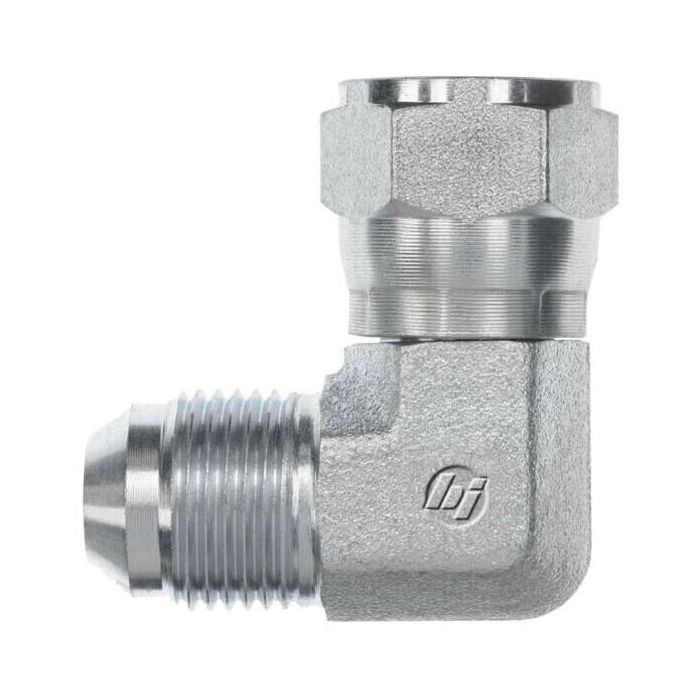

#5 MJIC X #5 FJIC 90*

Description & Features

The 05MJ-05FJS 90Deg Elbow Forged by Brennan Industries Inc stands out for its robust steel forging ensuring durability and reliability in demanding industrial applications. Engineered to meet SAE J514 specifications this elbow features a 1/2"-20 male JIC SAE 37-degree flare on one end and a 1/2"-20 female JIC swivel 37-degree flare on the other making it highly versatile.

With an overall length of 1.060 mm and a centerline length of 0.950 mm the precise dimensions of this elbow contribute to its suitability for tight spaces. The hex size is 0.562 mm providing substantial grip for secure installations. The thread drill size for both ends is 0.234 mm enhancing compatibility with existing fittings.

This forged steel elbow is designed for critical industrial fluid transfer and mechanical systems offering a reliable and sturdy connection solution. Please note the product includes a PROP-65 warning for California residents.

Supplier Part Number: 6500-05-05-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6500-05-05-FG	Product Weight 1.00 lbs

Product Questions & Answers (1)

Question by: Wayne M on Mar 16, 2026, 9:18 PM

got a hose end that’s #5 JIC male, will this elbow mate up with it and still give me a swivel on the other side?

Answer by: Customer Support on Mar 18, 2026, 2:46 PM

For a quick fit check, one end is a #5 male JIC 37 degree flare with 1/2-20 threads, and the other end is a #5 female JIC swivel 37 degree flare, also 1/2-20. That gives you a male flare to connect to a female JIC, plus a swivel female side for the mating male JIC fitting.
