06MJ-04FJS 90 ELB

Description & Features

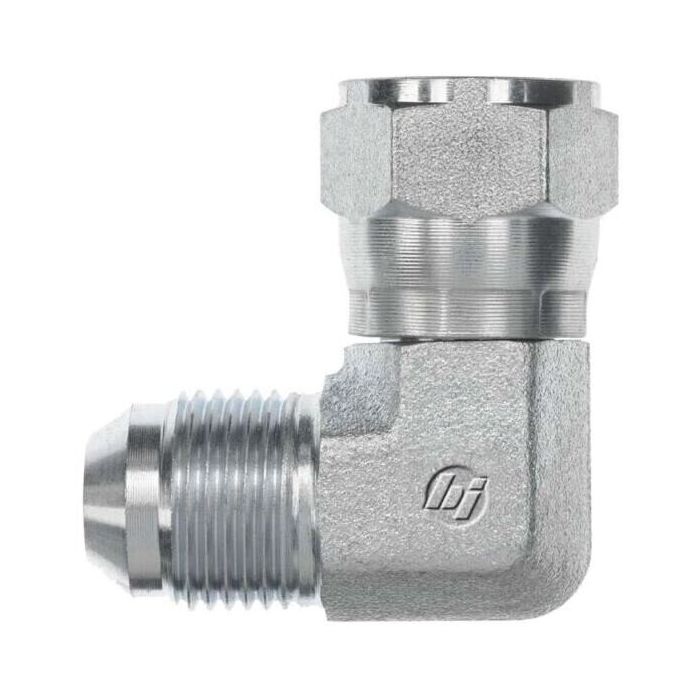

Forged from steel, this 90-degree elbow fitting transitions a 9/16-18 Male JIC SAE 37-degree flare connection to a 7/16-20 Female JIC swivel 37-degree flare, conforming to SAE J514 on both ends. The 06MJ-04FJS 90 ELB is part of Brennan Industries' 6500-Fg series, designed for hydraulic line routing where a right-angle change in direction is required between mismatched port sizes.

The forged steel construction provides solid durability for hydraulic fitting applications. The swivel feature on the female end allows for easier installation and alignment without twisting the connected line. With an overall length of 1.240 inches and a centerline length of 1.060 inches, the fitting is compact enough for use in tight assemblies. California residents should note that this product carries a Prop 65 warning.

SKU: 6500-06-04-FG

Supplier Part Number (MPN): 6500-06-04-FG

Alternate Part Numbers: 6500-06-04, 6500-6-4, A2071-6-4S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6500-06-04-FG	Product Weight 0.11 lbs

Product Questions & Answers (1)

Question by: Wade C on Dec 4, 2025, 9:05 PM

Will this fitting work to connect different size lines at a 90-degree angle?

Answer by: Customer Support on Dec 6, 2025, 3:54 PM

Yes, this 90-degree elbow fitting is designed to transition between a 9/16-18 Male JIC and a 7/16-20 Female JIC connection, providing that right-angle change you need.
