#6 FJIC X #6 MJ 90

Description & Features

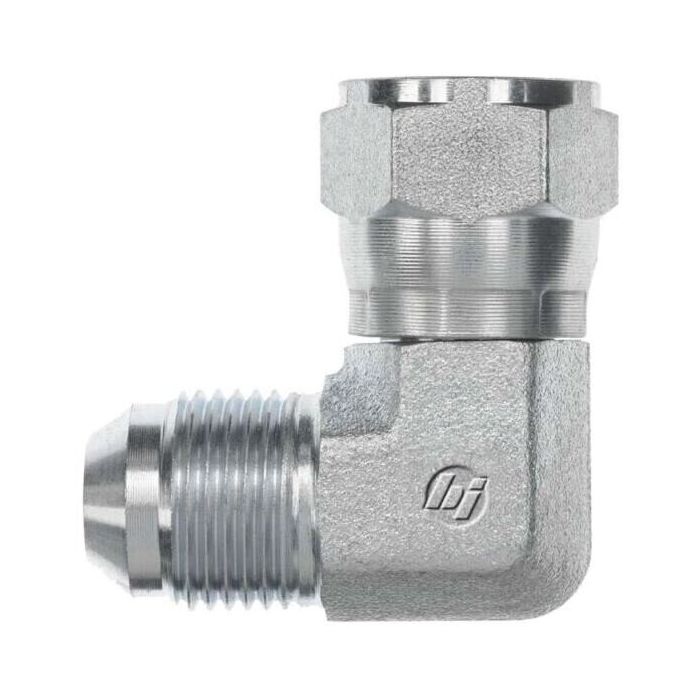

This 90-degree elbow forged fitting is crafted by Brennan Industries Inc. and belongs to the 6500-FG series. It features a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other end both with thread size 9/16-18 complying with SAE J514 specifications.

The unit's compact design is evident from its overall length of 1.250 mm and centerline length of 1.060 mm. The forging from high-quality steel ensures durability and reliable performance in demanding industrial applications. Each side has a thread drill diameter of 0.297 mm.

Supplier Part Number: 6500-06-06-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
1.25 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 x 0.688 in
l2 Dimensions
0.87 in
l Dimensions
1.25 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
6500-FG Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Material Construction Thread Size Hex Size Price Action
#3 MJIC X #3 FJIC 90*

6500-03-03-FG

3/16 in

Female SAE 37 deg JIC Flare Swivel

3/16 in

AISI C1045 Steel

3/8-24

0.44 x 0.5 in

04MJ-06FJS 90 ELB

6500-04-06-FG

1/4 in

Male SAE 37 deg JIC Flare

3/8 in

AISI 1045 Steel

9/16-18, 7/16-20

0.563 x 0.688 in

#5 MJIC X #5 FJIC 90*

6500-05-05-FG

5/16 in

Male SAE 37 deg JIC Flare

5/16 in

AISI 1045 Steel

1/2-20

9/16 x 5/8 in

06MJ-04FJS 90 ELB

6500-06-04-FG

3/8 in

Male SAE 37 deg JIC Flare

1/4 in

AISI 1045 Steel

9/16-18, 7/16-20

0.563 in

#6 MJIC X #8 FJIC 90*

6500-06-08-FG

3/8 in

Male SAE 37 deg JIC Flare

1/2 in

AISI 1045 Steel

3/4-16, 9/16-18

7/8 x 3/4 in

#8 MJ X #6 FJ 90*

6500-08-06-FG

3/8 in

Female SAE 37 deg JIC Flare Swivel

1/2 in

AISI C1045 Steel

3/4-16, 9/16-18

0.75 x 0.69 in

#8 MJIC X #10 FJIC 90*

6500-08-10-FG

1/2 in

Male SAE 37 deg JIC Flare

5/8 in

AISI 1045 Steel

7/8-14 x 3/4-16

7/8 x 1 in

#8 MJIC X #12 FJIC 90*

6500-08-12-FG

3/4 in

Female SAE 37 deg JIC Flare Swivel

1/2 in

AISI C1045 Steel

3/4-16 x 1-1/16-12

1.06 in, 1.25 in

#10 MJ X #8 FJ 90*

6500-10-08-FG

1/2 in

Female SAE 37 deg JIC Flare Swivel

5/8 in

AISI C1045 Steel

7/8-14 x 3/4-16

7/8 in

#10 MJIC X #10 FJIC 90*

6500-10-10-FG

5/8 in

Male SAE 37 deg JIC Flare

5/8 in

AISI 1045 Steel

7/8-14

7/8 x 1 in

10MJ-12FJS 90 DEG ELBOW

6500-10-12-FG

5/8 in

Male SAE 37 deg JIC Flare

3/4 in

AISI 1045 Steel

7/8-14 x 1-1/16-12

1.06 in, 1.25 in

#12 MJ X #8 FJ 90*

6500-12-08-FG

3/4 in

Male SAE 37 deg JIC Flare

1/2 in

AISI 1045 Steel

3/4-16 x 1-1/16-12

0.875 x 1.063 in

#12 MJ X #10 FJ 90

6500-12-10-FG

5/8 in

Female SAE 37 deg JIC Flare Swivel

3/4 in

AISI C1045 Steel

7/8-14 x 1-1/16-12

1 in, 1.06 in

12MJ-12FJS 90 ELB

6500-12-12-FG

3/4 in

Male SAE 37 deg JIC Flare

3/4 in

AISI 1045 Steel

1-1/16-12

1.06 in, 1.25 in

6500-12-16-FG

6500-12-16-FG

3/4 in

Male SAE 37 deg JIC Flare

1 in

AISI 1045 Steel

1-5/16-12 x 1-1/16-12

#14 MJIC X #14 FJIC 90*

6500-14-14

7/8 in

Male SAE 37 deg JIC Flare

7/8 in

AISI 1045 Steel

1-3/16-12

1.375 x 1.312 in

16MJ-12FJS 90 Elb Forg

6500-16-12-FG

1 in

Male SAE 37 deg JIC Flare

3/4 in

AISI 1045 Steel

1-5/16-12 x 1-1/16-12

16MJ-16FJS 90 DEG ELBOW FORGED

6500-16-16-FG

1 in

Male SAE 37 deg JIC Flare

1 in

AISI 1045 Steel

1-5/16-12

#20 MJIC X #20 FJIC 90*

6500-20-20-FG

1-1/4 in

Male SAE 37 deg JIC Flare

1-1/4 in

AISI 1045 Steel

1-5/8-12

24MJ-24FJS 90 ELB

6500-24-24

1-1/2 in

Male SAE 37 deg JIC Flare

1-1/2 in

AISI 1045 Steel

1-7/8-12

32 MJIC X 32 FJIC 90

6500-32-32

2 in

Male SAE 37 deg JIC Flare

2 in

AISI 1045 Steel

2-1/2-12

2.88 x 2.5 in

Product Questions & Answers (2)

Question by: Ronnie J on May 9, 2025, 6:08 PM
both ends are 9/16-18 on this thing? just want to make sure before i order, been burned before buying fittings that looked right but weren't
Answer by: Customer Support on May 11, 2025, 4:03 PM
both connections are 9/16-18. One end is a male JIC 37-degree flare and the other is a female JIC swivel with the same 37-degree flare angle. Both conform to SAE J514, so if your lines are spec'd to that standard at that thread size, you're looking at the right fitting.
Question by: Rod W on Jul 5, 2025, 4:43 PM
got a hose end that’s #6 female JIC swivel, will this elbow screw right into it and still give me a #6 male on the other side?
Answer by: Customer Support on Jul 7, 2025, 6:33 AM
On the swivel side you get a #6 female JIC swivel 37 degree flare with 9/16-18 threads, and the other end is a #6 male JIC SAE 37 degree flare, also 9/16-18. So it’s made to mate a #6 female JIC swivel connection to a #6 male JIC flare connection, in a 90 degree elbow.
