#6 MJIC X #8 FJIC 90*

Description & Features

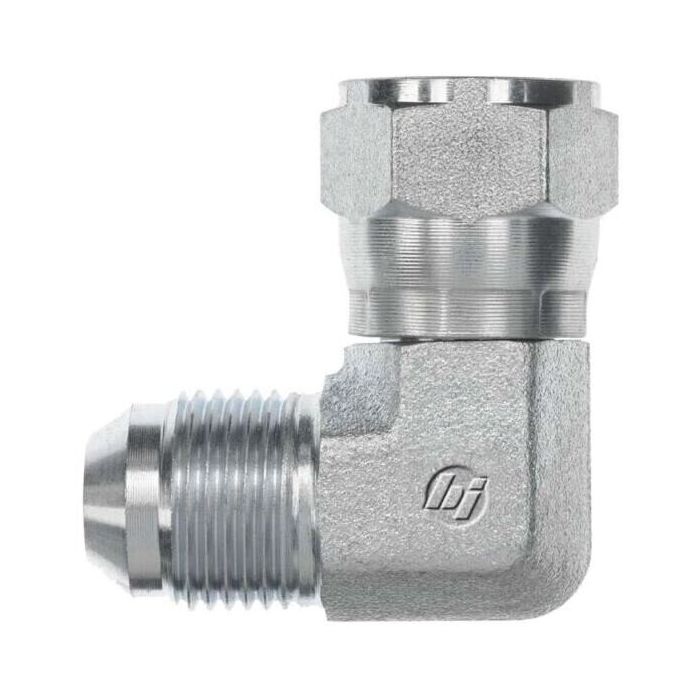

This 06MJ-08FJS 90-degree elbow forged fitting by Brennan Industries Inc is engineered for robust and efficient fluid connections. Designed with precision it features a male JIC SAE 37-degree flare and a female JIC swivel 37-degree flare adhering to SAE J514 specifications. The meticulously forged steel construction ensures superior durability and performance in demanding environments.

The centerline length measures 1.140 mm with an overall length of 1.380 mm and a secondary overall length of 0.950 mm. The hex dimension is 0.750 mm offering reliable and secure connections. The fitting threads for B1 and B2 are sized at 9/16-18 and 3/4-16 respectively providing compatibility with a range of industrial applications.

The product offers a thread drill size of 0.297 mm for Thread B1 and 0.391 mm for Thread B2 enhancing the accuracy of connections. This high-precision fitting is suitable for various operational conditions providing reliability where it matters most.

Supplier Part Number: 6500-06-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
1.38 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 x 3/4 in
l2 Dimensions
0.95 in
l Dimensions
1.38 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
6500-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
3/4-16, 9/16-18

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Material Construction Thread Size Hex Size Price Action
#3 MJIC X #3 FJIC 90*

6500-03-03-FG

3/16 in

Female SAE 37 deg JIC Flare Swivel

3/16 in

AISI C1045 Steel

3/8-24

0.44 x 0.5 in

04MJ-06FJS 90 ELB

6500-04-06-FG

1/4 in

Male SAE 37 deg JIC Flare

3/8 in

AISI 1045 Steel

9/16-18, 7/16-20

0.563 x 0.688 in

#5 MJIC X #5 FJIC 90*

6500-05-05-FG

5/16 in

Male SAE 37 deg JIC Flare

5/16 in

AISI 1045 Steel

1/2-20

9/16 x 5/8 in

06MJ-04FJS 90 ELB

6500-06-04-FG

3/8 in

Male SAE 37 deg JIC Flare

1/4 in

AISI 1045 Steel

9/16-18, 7/16-20

0.563 in

#6 FJIC X #6 MJ 90

6500-06-06-FG

3/8 in

Male SAE 37 deg JIC Flare

3/8 in

AISI 1045 Steel

9/16-18

0.563 x 0.688 in

#8 MJ X #6 FJ 90*

6500-08-06-FG

3/8 in

Female SAE 37 deg JIC Flare Swivel

1/2 in

AISI C1045 Steel

3/4-16, 9/16-18

0.75 x 0.69 in

#8 MJIC X #10 FJIC 90*

6500-08-10-FG

1/2 in

Male SAE 37 deg JIC Flare

5/8 in

AISI 1045 Steel

7/8-14 x 3/4-16

7/8 x 1 in

#8 MJIC X #12 FJIC 90*

6500-08-12-FG

3/4 in

Female SAE 37 deg JIC Flare Swivel

1/2 in

AISI C1045 Steel

3/4-16 x 1-1/16-12

1.06 in, 1.25 in

#10 MJ X #8 FJ 90*

6500-10-08-FG

1/2 in

Female SAE 37 deg JIC Flare Swivel

5/8 in

AISI C1045 Steel

7/8-14 x 3/4-16

7/8 in

#10 MJIC X #10 FJIC 90*

6500-10-10-FG

5/8 in

Male SAE 37 deg JIC Flare

5/8 in

AISI 1045 Steel

7/8-14

7/8 x 1 in

10MJ-12FJS 90 DEG ELBOW

6500-10-12-FG

5/8 in

Male SAE 37 deg JIC Flare

3/4 in

AISI 1045 Steel

7/8-14 x 1-1/16-12

1.06 in, 1.25 in

#12 MJ X #8 FJ 90*

6500-12-08-FG

3/4 in

Male SAE 37 deg JIC Flare

1/2 in

AISI 1045 Steel

3/4-16 x 1-1/16-12

0.875 x 1.063 in

#12 MJ X #10 FJ 90

6500-12-10-FG

5/8 in

Female SAE 37 deg JIC Flare Swivel

3/4 in

AISI C1045 Steel

7/8-14 x 1-1/16-12

1 in, 1.06 in

12MJ-12FJS 90 ELB

6500-12-12-FG

3/4 in

Male SAE 37 deg JIC Flare

3/4 in

AISI 1045 Steel

1-1/16-12

1.06 in, 1.25 in

6500-12-16-FG

6500-12-16-FG

3/4 in

Male SAE 37 deg JIC Flare

1 in

AISI 1045 Steel

1-5/16-12 x 1-1/16-12

#14 MJIC X #14 FJIC 90*

6500-14-14

7/8 in

Male SAE 37 deg JIC Flare

7/8 in

AISI 1045 Steel

1-3/16-12

1.375 x 1.312 in

16MJ-12FJS 90 Elb Forg

6500-16-12-FG

1 in

Male SAE 37 deg JIC Flare

3/4 in

AISI 1045 Steel

1-5/16-12 x 1-1/16-12

16MJ-16FJS 90 DEG ELBOW FORGED

6500-16-16-FG

1 in

Male SAE 37 deg JIC Flare

1 in

AISI 1045 Steel

1-5/16-12

#20 MJIC X #20 FJIC 90*

6500-20-20-FG

1-1/4 in

Male SAE 37 deg JIC Flare

1-1/4 in

AISI 1045 Steel

1-5/8-12

24MJ-24FJS 90 ELB

6500-24-24

1-1/2 in

Male SAE 37 deg JIC Flare

1-1/2 in

AISI 1045 Steel

1-7/8-12

32 MJIC X 32 FJIC 90

6500-32-32

2 in

Male SAE 37 deg JIC Flare

2 in

AISI 1045 Steel

2-1/2-12

2.88 x 2.5 in

Product Questions & Answers (2)

Question by: Tammy R on Oct 11, 2025, 7:35 PM
Got a tight spot in a hydraulic line where I need to change direction, will a #6 male JIC on one end and a #8 female JIC swivel on the other end work for that kind of setup?
Answer by: Customer Support on Oct 13, 2025, 3:29 PM
Yeah, that's exactly what this fitting is built for. The male end is a 9/16-18 thread with a 37-degree flare, and the female swivel side runs 3/4-16, also 37-degree flare, both meeting SAE J514 spec. The 90-degree angle handles the direction change, and the swivel on the female end gives you some rotational flexibility during installation so you're not fighting the line to get it seated right.
Question by: Roger P on Feb 22, 2026, 7:56 AM
Will this fitting hold up if I'm running hydraulic fluid through it pretty much all day long?
Answer by: Customer Support on Feb 24, 2026, 6:55 AM
This fitting is forged from steel, so it's designed for durability in demanding applications. It should be suitable for continuous operation under normal hydraulic conditions.
