#10 MJIC X #10 FJIC 90*

Description & Features

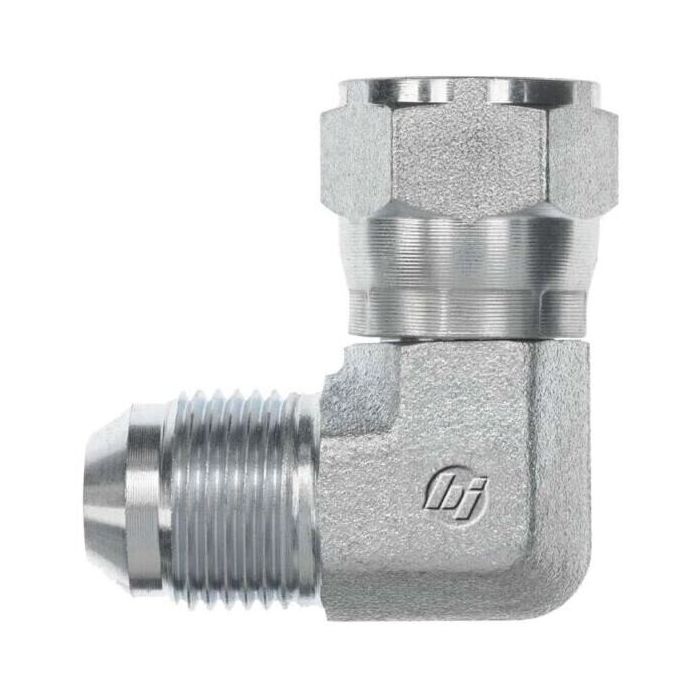

The 10MJ-10FJS 90-degree elbow forged by Brennan Industries Inc is a precision-engineered fitting designed for specialized industrial applications. This component features a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other ensuring secure and efficient connections.

Made from high-quality steel forging this durable elbow supports reliable performance under demanding conditions. With a C Hex size of 0.875 mm and an overall length of 1.620 mm it offers precise alignment and fitment. The thread sizes are 7/8-14 adhering to SAE J514 specifications providing compatibility with industry standards.

Designed for critical operations this 90-degree elbow boasts a centerline length of 1.450 mm and an L2 length of 1.120 mm ensuring optimal configuration and space utilization. The male and female threads enhance the versatility and utility of this fitting in varying setups.

All these features come with a Proposition 65 warning for California residents.

Supplier Part Number: 6500-10-10-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6500-10-10-FG	Product Weight 1.00 lbs

Product Questions & Answers (3)

Question by: Janice H on Sep 23, 2025, 10:50 AM

Will this fitting hold up if I'm using it for hydraulics on a farm tractor?

Answer by: Customer Support on Sep 24, 2025, 2:17 PM

This 90-degree elbow is made from forged steel, so it should be durable enough for demanding hydraulic applications.

Question by: Bobby M on Dec 16, 2025, 3:55 PM

got a hose with a #10 JIC on it already. is this the elbow that’ll turn it 90 and still stay #10 on both ends?

Answer by: Customer Support on Dec 18, 2025, 6:52 AM

For a 90 degree turn while keeping the same size, this fitting matches #10 MJIC on one side and #10 FJIC swivel on the other, both with SAE 37 degree flare seats. The threads are 7/8-14 on both ends to SAE J514, so it stays #10 JIC end to end.

Question by: Eddie H on Oct 8, 2025, 2:48 PM

both ends on this thing are 7/8-14 threads, does that mean I can swap it in where I've got a straight JIC fitting right now, or is there something about the swivel end that changes the game?

Answer by: Customer Support on Oct 10, 2025, 2:13 PM

The male end is a standard 7/8-14 JIC SAE 37-degree flare, same as what you'd find on a typical straight fitting at that thread size. The female end is a swivel, which actually gives you a little more flexibility during installation since it can rotate without twisting the line. Both ends conform to SAE J514, so thread compatibility with other J514-rated fittings at that size is solid. The 90-degree angle is the main thing to account for when swapping from a straight fitting, make sure you've got the clearance for it before you commit.
