#20 MJIC X #20 FJIC 90*

Description & Features

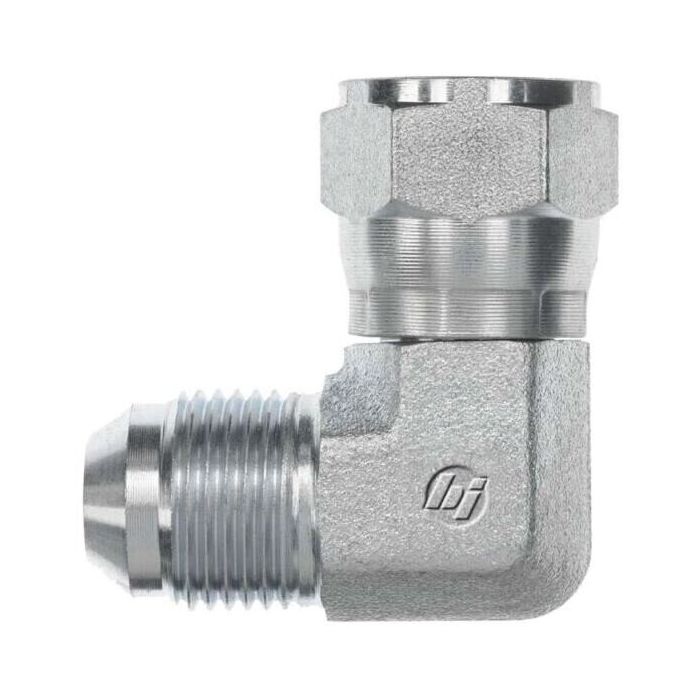

Manufactured from high-grade steel forging this 20MJ-20FJS 90-degree elbow forged by Brennan Industries Inc. features robust construction ensuring long-lasting performance under demanding conditions. With an overall length of 2.310 mm and a centerline length of 2.060 mm it is precisely engineered to meet rigorous specifications.

The male JIC SAE 37-degree flare thread and female JIC swivel 37-degree flare thread both conforming to SAE J514 standards offer reliable connectivity and compatibility. Built to accommodate thread sizes of 1-5/8-12 mm in both directions this component is designed to facilitate smooth and secure connections.

Supplier Part Number: 6500-20-20-FG

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6500-20-20-FG	Product Weight 1.00 lbs

Product Questions & Answers (1)

Question by: Todd J on Dec 26, 2025, 6:20 AM

Thread size on both ends is 1-5/8-12, that right? Just want to make sure before I order a handful of these for a retrofit job we got going.

Answer by: Customer Support on Dec 27, 2025, 3:33 PM

Both ends run the same 1-5/8-12 thread, yeah. One side is a male JIC with the standard SAE 37-degree flare, and the other is a female JIC swivel, also 37-degree flare. Both conform to SAE J514, so they'll play nice with other J514-compliant fittings on your system.
