BRENNAN MJIC X FMJIC 90DG

Description & Features

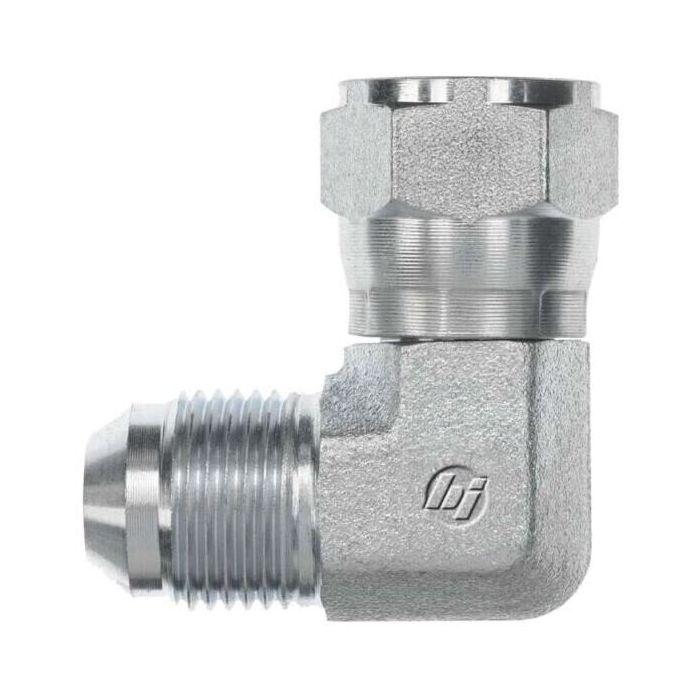

Configured as a 90-degree elbow, the Brennan MJIC x FMJIC 90DG connects two 1-5/8-12 JIC lines at a right angle, with a male JIC SAE 37-degree flare on one end and a female JIC swivel 37-degree flare on the other. Both threads conform to SAE J514, making this fitting suitable for standard JIC hydraulic line assemblies where a directional change is needed.

Machined from stainless steel, this fitting from Brennan Industries' 6500-FG series offers corrosion resistance in demanding fluid power environments. The swivel feature on the female end simplifies assembly and helps reduce stress on connected lines. With a hex dimension of 1.625 inches and an overall length of 2.310 inches, it fits within typical installation envelopes for 1-1/4 inch JIC connections.

California Residents: Prop 65 Warning.

SKU: 6500-20-20-SS

Supplier Part Number (MPN): 6500-20-20-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6500-20-20-SS	Product Weight 2.93 lbs

Product Questions & Answers (1)

Question by: Billy A on Oct 18, 2025, 6:56 AM

What’s the deal with that Prop 65 warning for California?

Answer by: Customer Support on Oct 19, 2025, 8:11 AM

That warning is there because this fitting may contain chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.
