#6 FJIC X #6 MJIC LONG 90

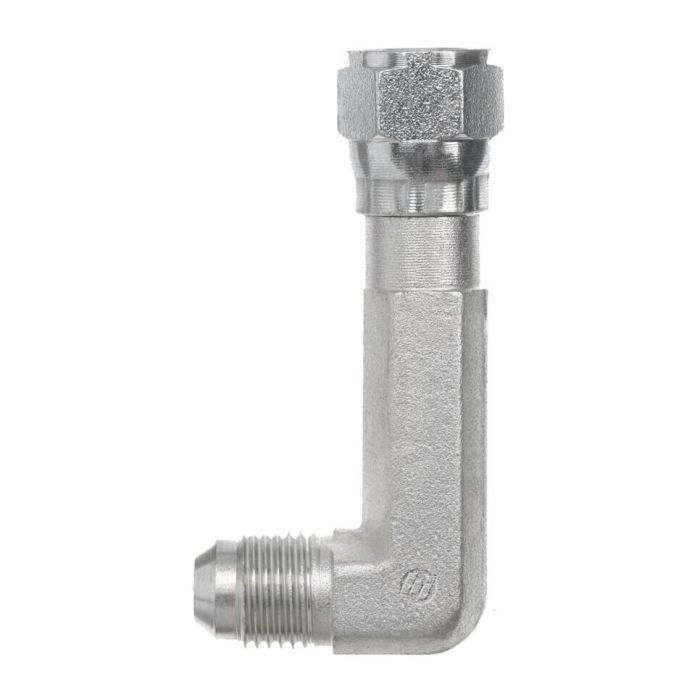

Forged from steel, the #6 FJIC x #6 MJIC Long 90 is a long-pattern 90-degree elbow fitting designed for JIC hydraulic line connections where a standard elbow lacks the clearance or routing geometry required. Both ends are sized at 9/16-18 and conform to SAE J514, with a male JIC 37-degree flare on one end and a female JIC swivel 37-degree flare on the other, the swivel end allowing angular adjustment during assembly without disturbing the male connection.

The forged steel construction provides the structural integrity typical of high-cycle hydraulic environments. The long centerline design offers additional offset compared to standard 90-degree elbows, useful in tight routing situations where hose or tube positioning demands more working room. Manufactured by Brennan Industries under their 6500-L-FG series, this fitting carries a California Proposition 65 notice.

SKU: 6500-L-06-06-FG

Supplier Part Number (MPN): 6500-L-06-06-FG
