02MP-04FJS 90 DEG ELBOW

Ask A Question

Description & Features

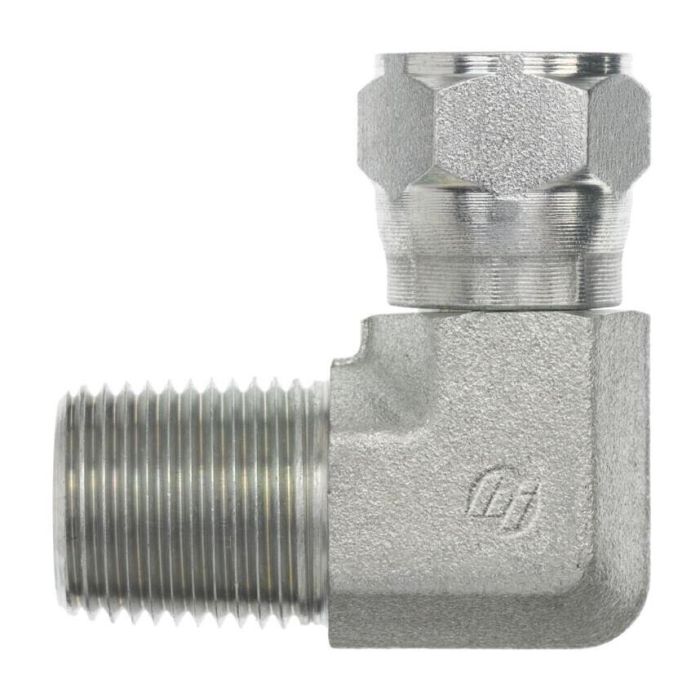

This 90-degree elbow features a forged steel construction for durability in demanding hydraulic applications. The 02MP-04FJS 90 DEG ELBOW provides a reliable connection between lines.

It incorporates a 7/16-20 Female JIC Swivel 37-degree Flare (SAE J514) on one end and a 1/8-27 Male NPTF (SAE J476) on the other. Its centerline length is 0.780 inches, with an overall length of 1.000 inches.

SKU: 6501-02-04-FG

Supplier Part Number (MPN): 6501-02-04-FG

Alternate Part Numbers: A2250-2-4S

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Female JIC Swivel, MNPT
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 x 0.438 in
l2 Dimensions
0.66 in
l Dimensions
1 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
6501-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.188 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
1/8-27, 7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Diane J on Jun 5, 2025, 6:15 PM
Will this elbow handle regular hydraulic pressures, or is it more for low-pressure stuff?
Answer by: Customer Support on Jun 7, 2025, 6:22 AM
This elbow is made from forged steel, so it's built to hold up in demanding hydraulic applications.
