04MP-05FJS 90 DEG ELBOW

Description & Features

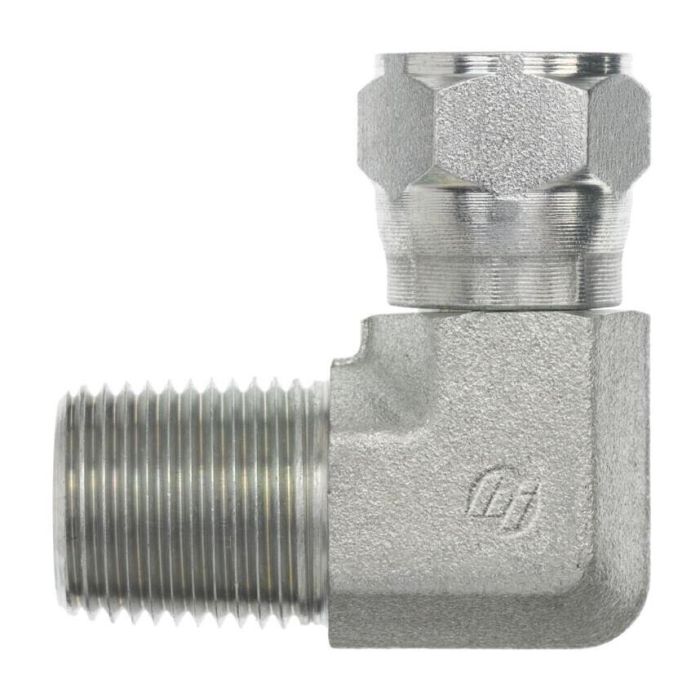

This 90-degree elbow features a male NPTF thread on one end and a female JIC Swivel 37-degree flare on the other.

The 04MP-05FJS 90 DEG ELBOW is constructed from forged steel for durability. The male NPTF thread (B1) measures 1/4-18 to SAE J476 specifications, with a 0.281-inch drill size. The female JIC Swivel 37-degree flare (B2) measures 1/2-20 to SAE J514 specifications, with a 0.234-inch drill size. It is part of the 6501-FG series.

SKU: 6501-04-05-FG

Supplier Part Number (MPN): 6501-04-05-FG

Alternate Part Numbers: 6501-04-05, C1DY65

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6501-04-05-FG	Tube O.D. 0.31 Inch	Product Weight 0.12 lbs

Product Questions & Answers (2)

Question by: Cheryl M on Jan 9, 2026, 6:25 AM

got a 1/4 NPTF male port on a manifold block and need to swing over to a JIC hose end, this the right fitting to make that happen?

Answer by: Customer Support on Jan 10, 2026, 3:58 PM

That's what this elbow is built for. One end is a 1/4-18 Male NPTF thread, which seats into a female NPTF port on your manifold or valve body. The other end is a 1/2-20 Female JIC swivel with a 37-degree flare seat, so your JIC hose end threads right in. The swivel lets you position the hose without fighting the fitting, which saves a lot of grief during install.

Question by: Ralph G on Sep 27, 2025, 8:56 AM

What size tubing does this elbow work with?

Answer by: Customer Support on Sep 28, 2025, 2:45 PM

This elbow is designed for use with 0.31 inch outside diameter tubing.
