04MP-06FJS 90 DEG Elbow

Description & Features

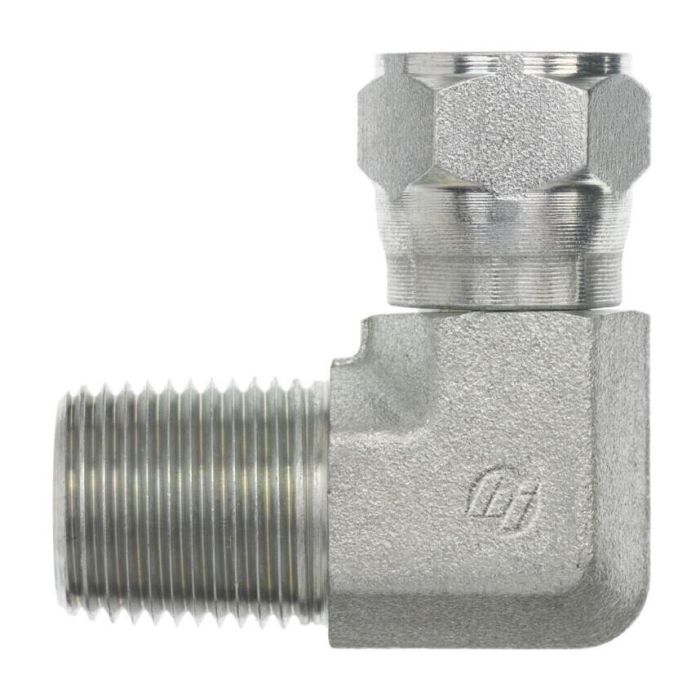

Crafted by Brennan Industries Inc this 04MP-06FJS 90 degree elbow is a forged steel component designed for industrial applications. With a Centerline Length of 1.090 mm and an Overall Length of 1.250 mm it provides robustness and durability. The Male NPTF Thread B1 specification follows SAE J476 while the Female JIC Swivel 37 Degree Flare Thread B2 specification aligns with SAE J514 standards.

The product ensures precision with a Thread B1 Drill size of 0.281 mm and a Thread B2 Drill size of 0.297 mm. Its C Hex 1 dimension is measured at 0.562 mm making it versatile and efficient for various connection requirements. This elbow fitting uses superior quality steel forging ensuring reliability in demanding environments.

Compliance with industry standards makes this product ideal for professional and industrial settings requiring high-performance fitting solutions. With a long-lasting design the 04MP-06FJS 90Deg Elbow Forged meets rigid quality benchmarks offering dependable performance.

Supplier Part Number: 6501-04-06-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6501-04-06-FG	Product Weight 0.00 lbs

Product Questions & Answers (3)

Question by: Larry A on May 4, 2025, 9:37 AM

thread on the male end is 1/4-18 NPTF -- does that fit standard pipe fittings or does it need something special to seal up right?

Answer by: Customer Support on May 5, 2025, 10:20 AM

NPTF threads are built to seal on their own through thread-to-thread contact, so you don't need a separate sealant the way you would with standard NPT in some situations. The 1/4-18 size is a common pipe thread size, so it'll fit any port or fitting tapped to that spec. Just make sure the mating port is also NPTF and not a lookalike thread standard, since mixing those can cause leak issues even when the threads appear to engage fine.

Question by: Jean C on Jul 5, 2025, 12:20 PM

trying to swap out a fitting, is this one the 1/4-18 male pipe thread to 9/16-18 female jic swivel in a 90?

Answer by: Customer Support on Jul 7, 2025, 6:35 AM

It’s a 90 degree elbow with a 1/4-18 Male NPTF thread on the B1 side and a 9/16-18 Female JIC swivel 37 degree flare on the B2 side, built to SAE J476 (NPTF) and SAE J514 (JIC) thread specs.

Question by: Troy W on Mar 14, 2026, 6:45 PM

Can this elbow handle some serious pressure in a hydraulic setup?

Answer by: Customer Support on Mar 16, 2026, 1:10 PM

This 90-degree elbow is forged from steel, ensuring it can withstand the demands of high-performance industrial applications.
